Circuit Diagram

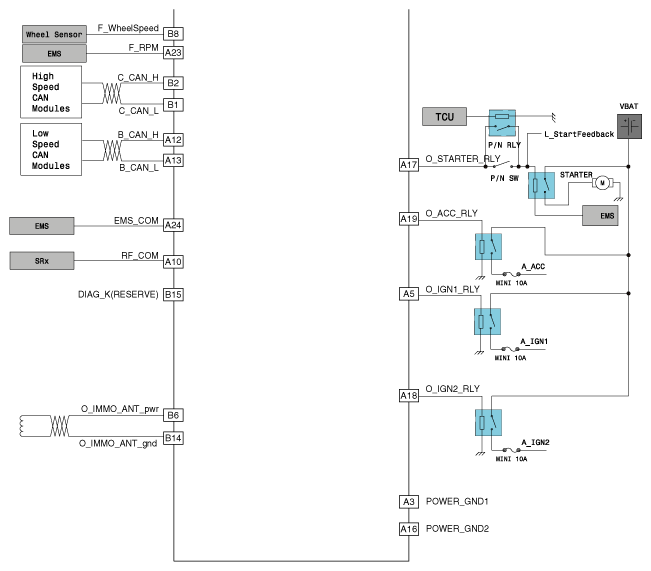

Fig 1: Smart Key Unit Circuit Diagram (1 Of 2)
G10576634Courtesy of HYUNDAI MOTOR AMERICA

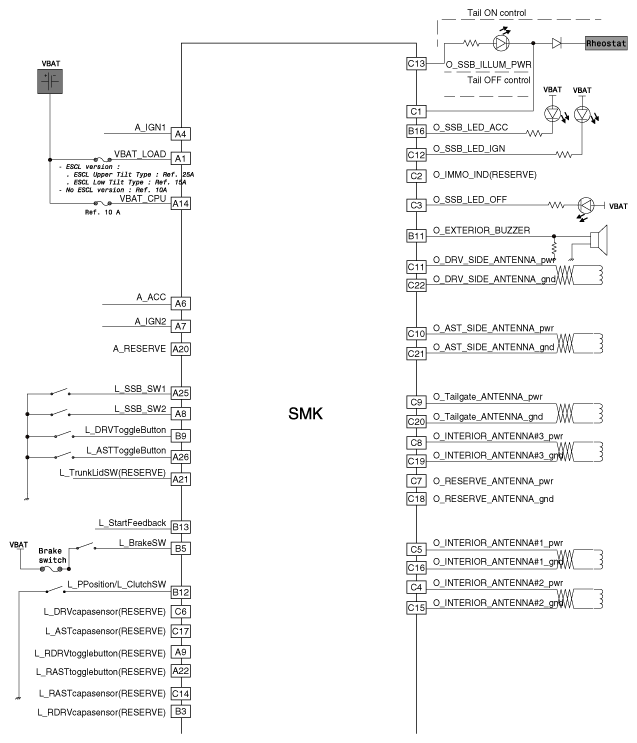

Fig 2: Smart Key Unit Circuit Diagram (2 Of 2)
G10576635Courtesy of HYUNDAI MOTOR AMERICA
