Fuel Pump

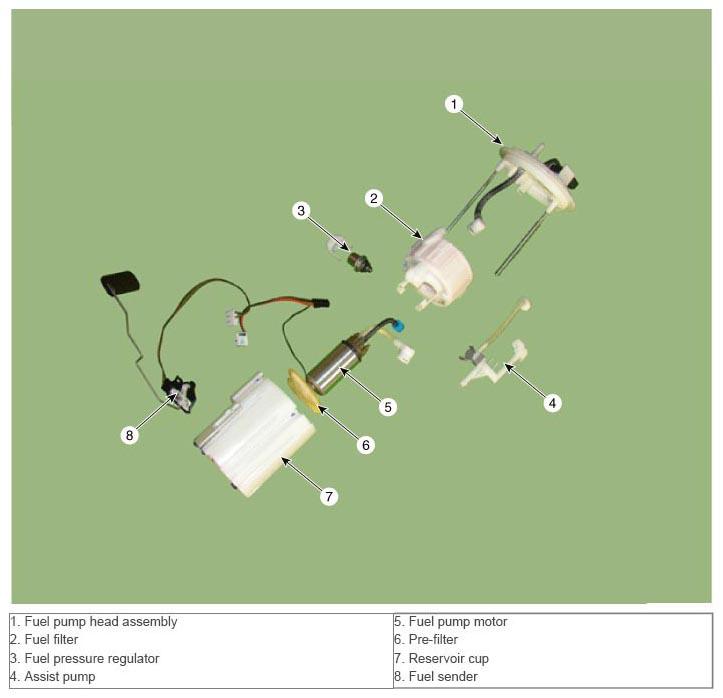

Fig 1: Fuel Pump Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
