Engine Control System Diagnosis (2 Of 2) - 1.6L GDI
>>
DTC P2237: O2 Sensor Pumping Current Circuit/Open (Bank 1 Sensor 1)
>>
Component Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Location

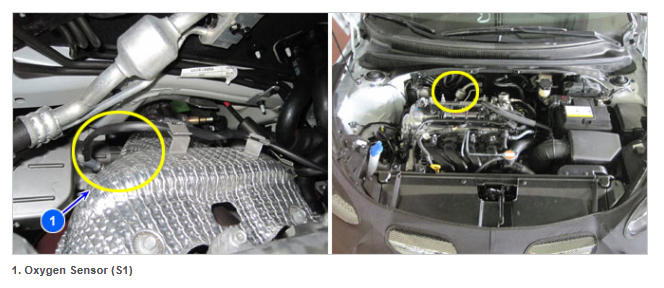

Fig 1: Identifying O2 Sensor (Bank 1 Sensor 1)
Courtesy of HYUNDAI MOTOR AMERICA
