Components and Components Location: Components

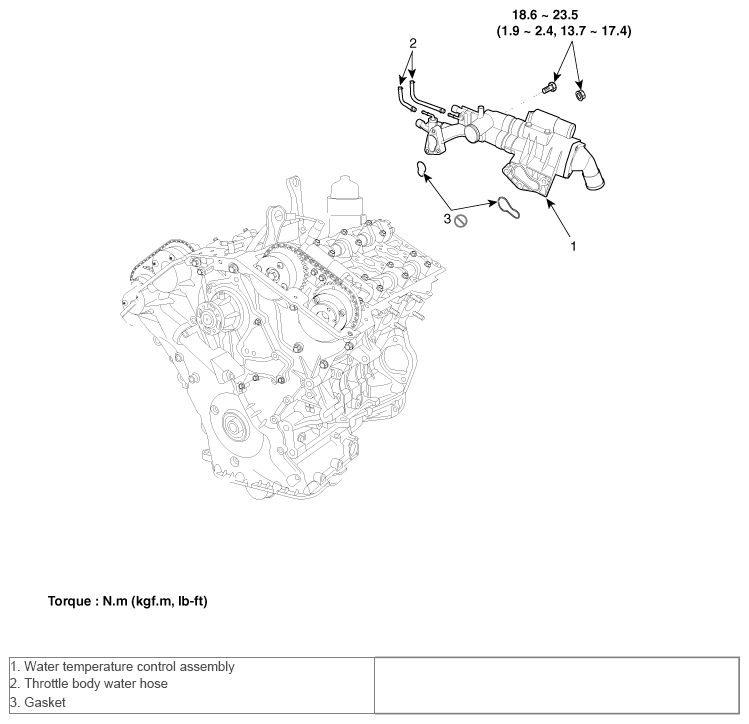

Fig 1: Water Temperature Control Assembly Components With Torque Specification
G10367098Courtesy of HYUNDAI MOTOR AMERICA
