Input/Output Specification

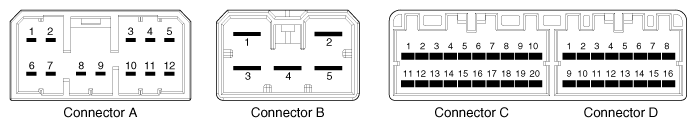

Connector Pin Lay Out
IMS INPUT/OUTPUT PIN INFORMATION
| No | Signal Name | I/O | Contents | Remark |
|---|---|---|---|---|
| A1 | Cushion motor FR | O | Cushion motor FR output | |
| A2 | FR height motor up | O | FR height motor up output | |
| A3 | RR height motor up | O | RR height motor up output | |
| A4 | Recline motor FR | O | Recline motor FR output | |
| A5 | Slide motor FR | O | Slide motor FR output | |
| A6 | Cushion motor RR | O | Cushion motor RR output | |
| A7 | FR height motor down | O | FR height motor down output | |
| A8 | - | - | - | |
| A9 | - | - | - | |
| A10 | RR height motor down | O | RR height motor down output | |
| A11 | Recline motor RR | O | Recline motor RR output | |
| A12 | Slide motor RR | O | Slide motor RR output | |
| B1 | GND(Power) | I | Power B+ for operating motor | |
| B2 | GND (Power) | I | Power GND for operating motor | |
| B3 | B+(Power) | I | Power B+ for operating motor | |
| B4 | - | - | - | |
| B5 | GND (Power) | I | Power GND for operating motor | |
| C1 | - | - | - | |
| C2 | - | - | - | |
| C3 | Slide FR manual switch | I | Slide FR manual switch input | On: GND |
| C4 | Recline FR manual switch | I | Recline FR manual switch input | On: GND |
| C5 | FR height up manual switch | I | FR height up manual switch input | On: GND |
| C6 | RR height up manual switch | I | RR height up manual switch input | On: GND |
| C7 | Slide motor sensor | I | Slide motor sensor input | Pulse signal |
| C8 | Recline motor sensor | I | Recline motor sensor input | Pulse signal |
| C9 | FR height motor sensor | I | FR height motor sensor input | Pulse signal |
| C10 | Sensor Vcc(Seat) | O | VCC for operating sensor | 5V |
| C11 | - | - | - | |
| C12 | - | - | - | |
| C13 | - | - | - | |
| C14 | - | - | - | |
| C15 | - | - | - | |
| C16 | - | - | - | |
| C17 | - | - | - | |
| C18 | - | - | - | |
| C19 | - | - | - | |
| C20 | - | - | - | |
| D1 | - | - | - | |
| D2 | RR height up sensor | I | RR height up motor sensor | Pulse signal |
| D3 | - | - | - | |
| D4 | CAN high | I/O | CAN | |
| D5 | CAN low | I/O | CAN | |
| D6 | - | - | - | |
| D7 | IGN1 | I | IGN1 input | BAT |
| D8 | B+(ECU) | I | ECU power input | BAT |
| D9 | GND(ECU) | I | ECU GND | |
| D10 | - | - | - | |
| D11 | - | - | - | |
| D12 | - | - | - | |
| D13 | - | - | - | |
| D14 | - | - | - | |
| D15 | - | - | - | |
| D16 | - | - | - |
