Interior A

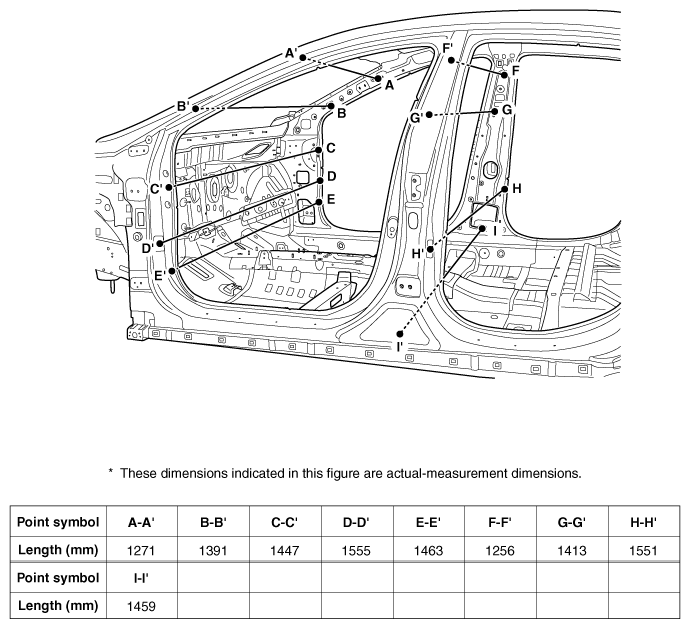

Fig 1: Interior A Dimensions
G10368285Courtesy of HYUNDAI MOTOR AMERICA

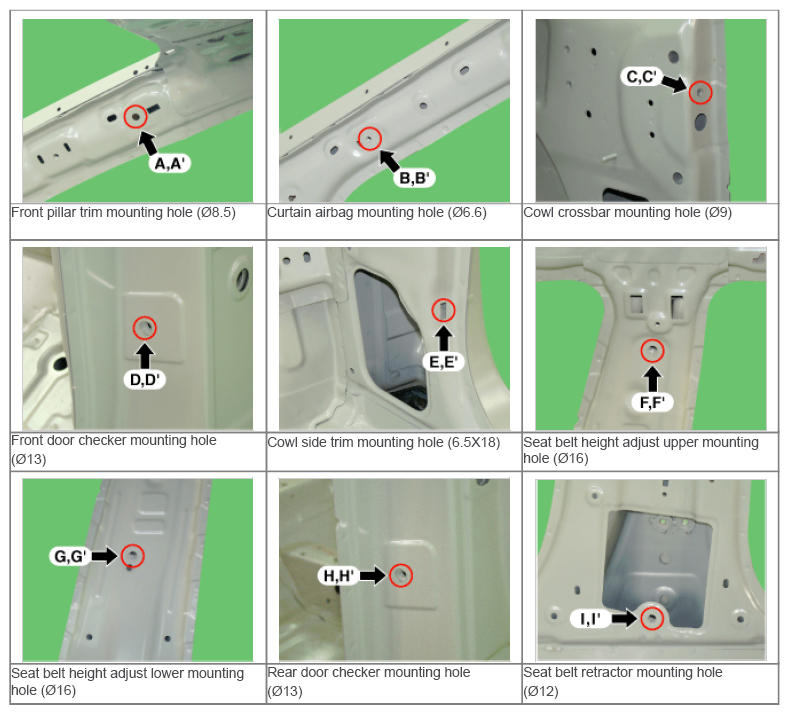

Fig 2: Front Pillar Trim And Cowl Crossbar Mounting Holes
G10368286Courtesy of HYUNDAI MOTOR AMERICA
