Repair Procedures: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

• A: Lumbar support switch
  Fig 1: Lumbar Support Switch

  Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Lumbar Support Switch

Courtesy of HYUNDAI MOTOR AMERICA

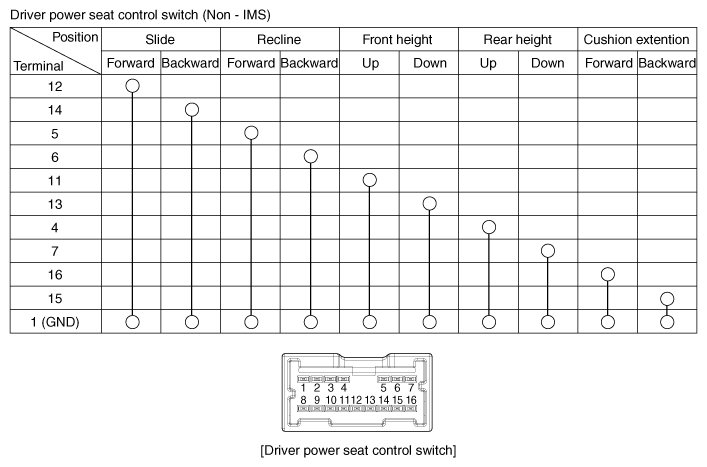

Fig 3: Driver Power Seat Control Switch Terminals

Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Driver lumbar Switch Continuity Reference Chart

Courtesy of HYUNDAI MOTOR AMERICA

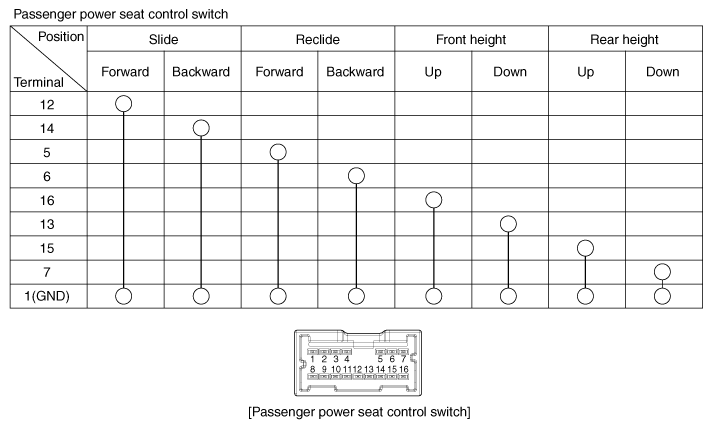

Fig 5: Passenger Power Seat Control Switch Continuity Reference Chart

Courtesy of HYUNDAI MOTOR AMERICA
