Components Location

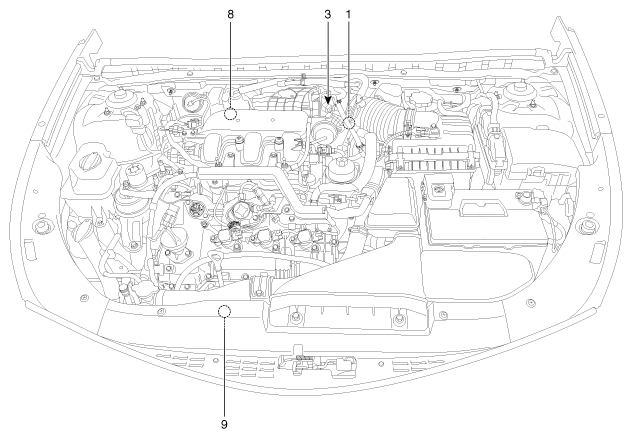

Fig 1: Engine Compartment Components Location (1 Of 3)
G10367324Courtesy of HYUNDAI MOTOR AMERICA

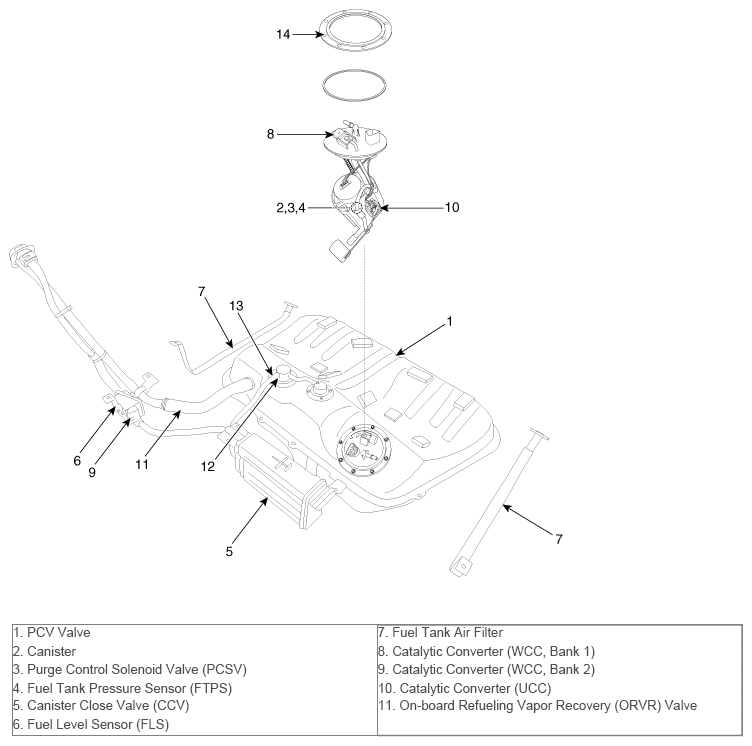

Fig 2: Engine Compartment Components Location (2 Of 3)
G10367325Courtesy of HYUNDAI MOTOR AMERICA

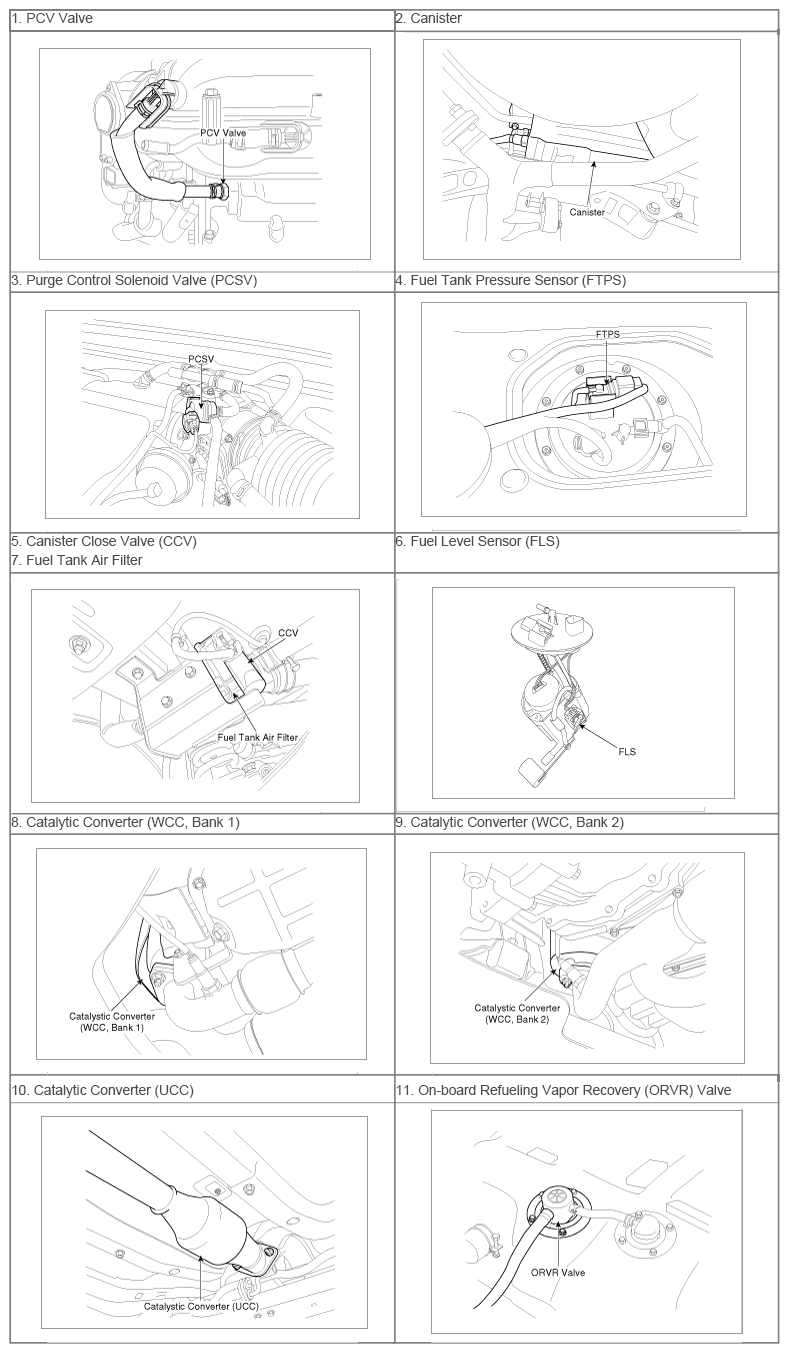

Fig 3: Engine Compartment Components Location (3 Of 3)
G10367326Courtesy of HYUNDAI MOTOR AMERICA
