Valve Body Flow

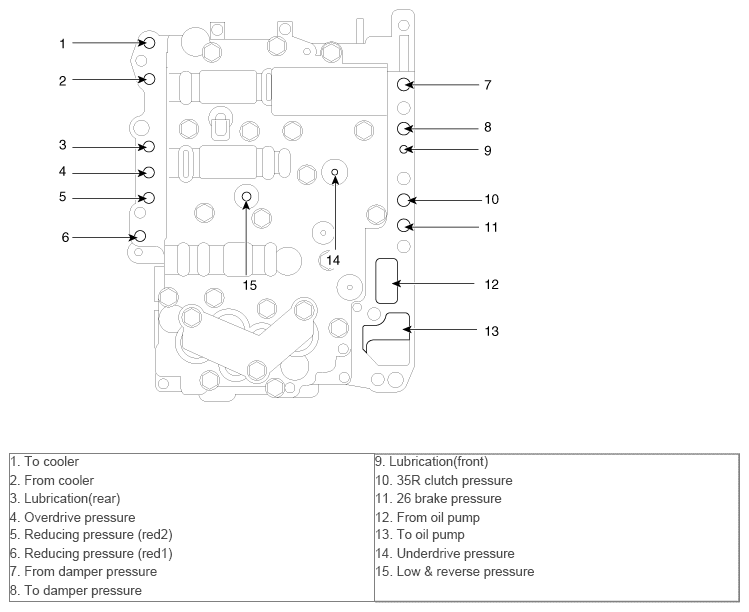

Fig 1: Valve Body Flow Point
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
