Variant Coding

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON", and then select the model, system (ESP (ESC))
  3. Click the Vehicle S/W Management button (Fig.1).
  4. Using GDS, Perform Variant Coding (Fig.2).
  5. IG "OFF" and wait for about 10 seconds, and then IG "ON".
  6. IG "OFF" and wait for about 10 seconds again, and then, IG "ON".
  7. Go to "COMPONENT INSPECTION " procedure.

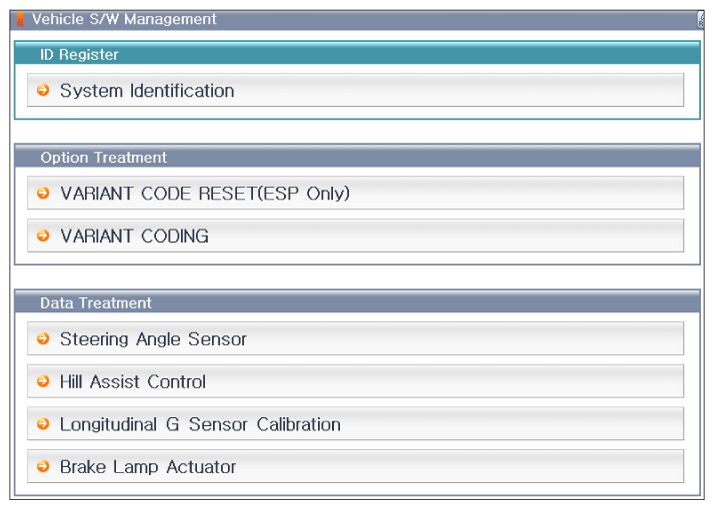

Fig 1: Screen Display - Vehicle S/W Management Button
G10752828Courtesy of HYUNDAI MOTOR AMERICA

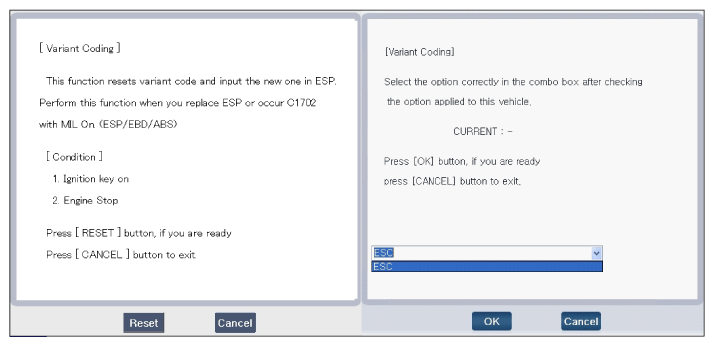

Fig 2: Screen Display - Variant Coding
G10752829Courtesy of HYUNDAI MOTOR AMERICA
