Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector In Driver Side Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

Fig 2: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA

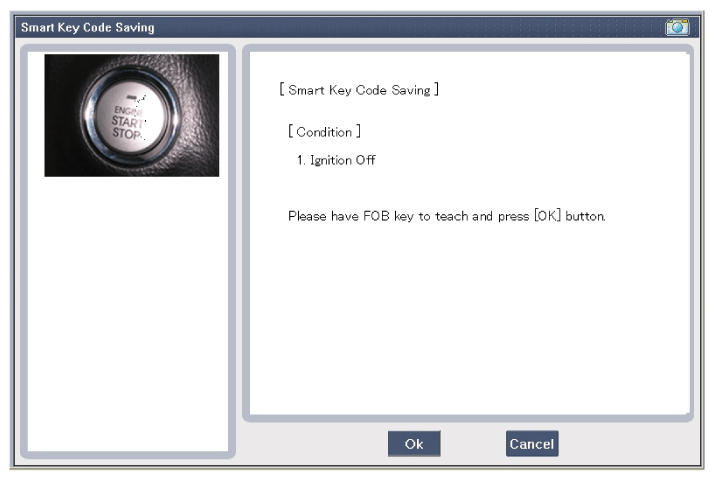

After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as in Fig 3.

Fig 3: Scantool Display - Smart Key Code Saving (Push Enter Key)
Courtesy of HYUNDAI MOTOR AMERICA

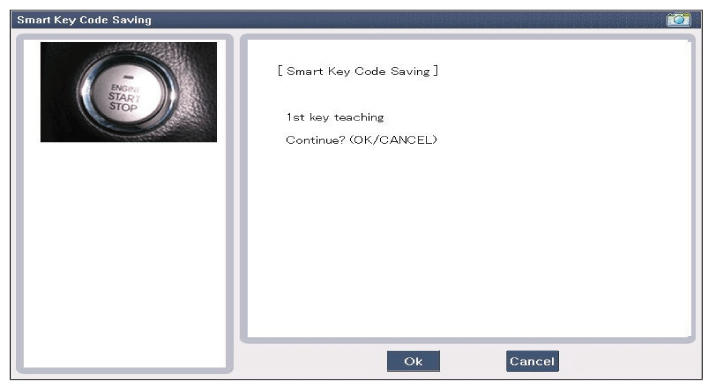

After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin code" for first key teaching.

Fig 4: Scantool Display - Smart Key Code Saving (Pin Code)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

Fig 6: Scantool Display - Smart Key Code Saving (First Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Scantool Display - Smart Key Code Saving (Smart Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA
Input the "Pin code" for second key teaching.

Fig 8: Scantool Display - Smart Key Code Saving (Pin Code)
Courtesy of HYUNDAI MOTOR AMERICA

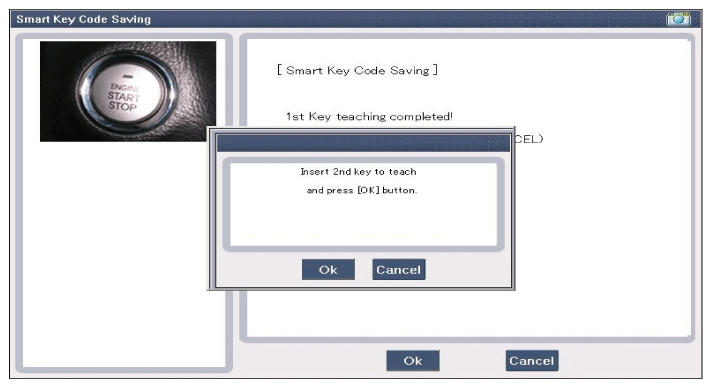

Fig 9: Scantool Display - Smart Key Code Saving (Insert 2nd Key To Teach)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

Fig 10: Scantool Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be shown as below when key teaching process is completed.
