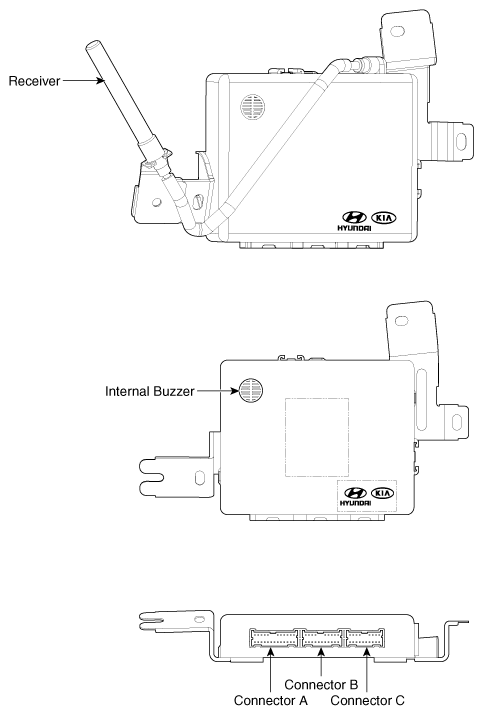

Components and Components Location: Components
* Internal Buzzer: Rear parking assist system buzzer
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Battery | LIN communication (RPAS) | Safety power window Enable high |
| 2 | IGN 1 | - | Navigation wakeup signal |
| 3 | IGN 2 | Front fog lamp switch | Key hole illumination |
| 4 | Brake switch | Side airbag option | Interior lamp |
| 5 | MIST switch | - | Puddle lamp |
| 6 | Crash Unlock | - | Key solenoid |
| 7 | Head lamp low switch | AV TAIL | ATM solenoid |
| 8 | Head lamp high switch | CAN HIGH | - |
| 9 | - | CAN LOW | - |
| 10 | - | Autolight ground | Security indicator |
| 11 | - | Autolight signal | - |
| 12 | - | Autolight power | - |
| 13 | ACC | Autolight switch | - |
| 14 | - | K-LINE communication | Wiper relay |
| 15 | - | Rear glass heater switch | - |
| 16 | R position | Passenger seat belt indicator led | - |
| 17 | Washer switch | - | - |
| 18 | Wiper INT switch | - | Power ground |
| 19 | - | Head lamp low signal | |
| 20 | Wiper INT volume | - | |
| 21 | Key IN switch | ||
| 22 | Tail lamp switch | ||
| 23 | Key interlock switch | ||
| 24 | Signal ground |
