Components Location

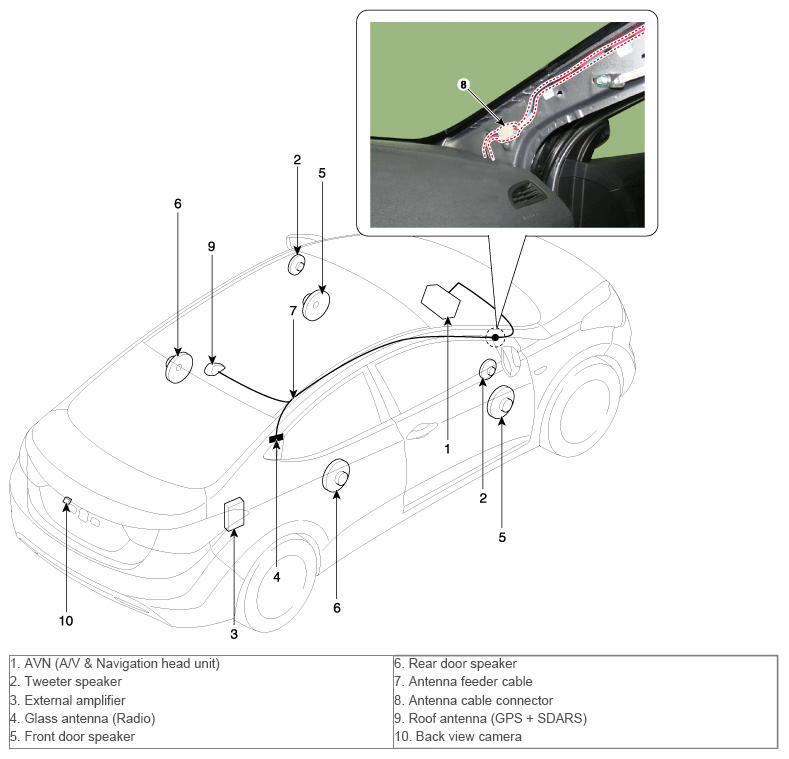

Fig 1: Audio/Video/Navigation System Component Locations
G10530765Courtesy of HYUNDAI MOTOR AMERICA

* SDARS: Satellite Digital Audio Radio Service
