Components and Components Location: Components

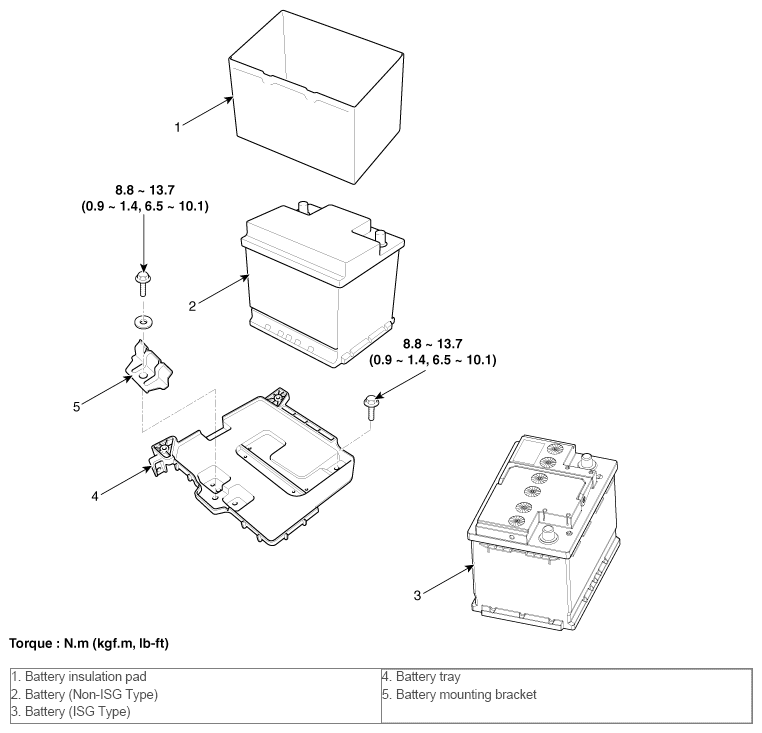

Fig 1: AGM Battery Components With Torque Specification
G10534009Courtesy of HYUNDAI MOTOR AMERICA
