DTC P1566: Analog Battery Sensor Circuit: Specification: Specification

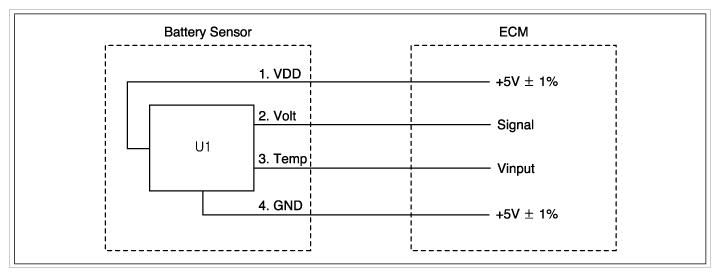

Fig 1: Battery Sensor Circuit Diagram
G10531946Courtesy of HYUNDAI MOTOR AMERICA
