Components and Components Location: Components

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

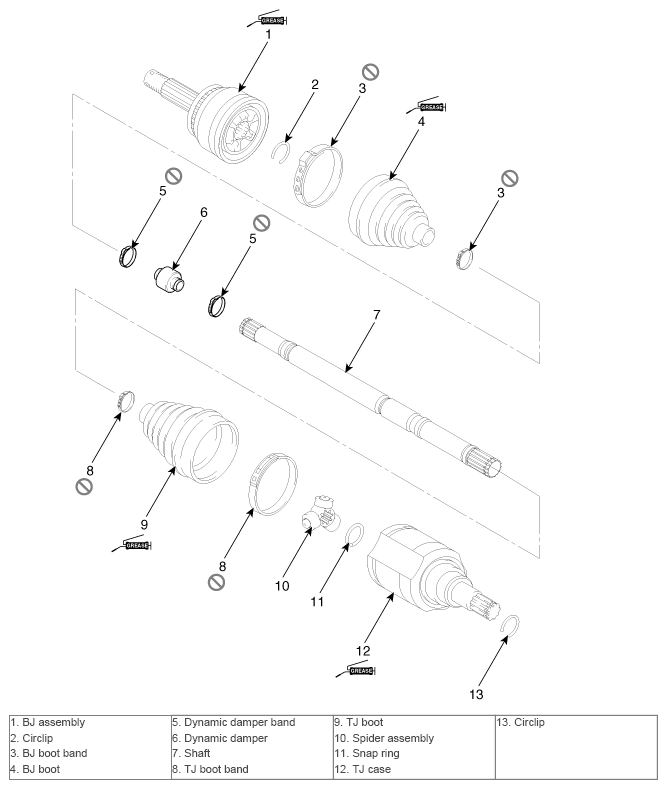

Fig 1: Exploded View Of Driveshaft Components - RH
G10750333Courtesy of HYUNDAI MOTOR AMERICA
