Components and Components Locations: Component

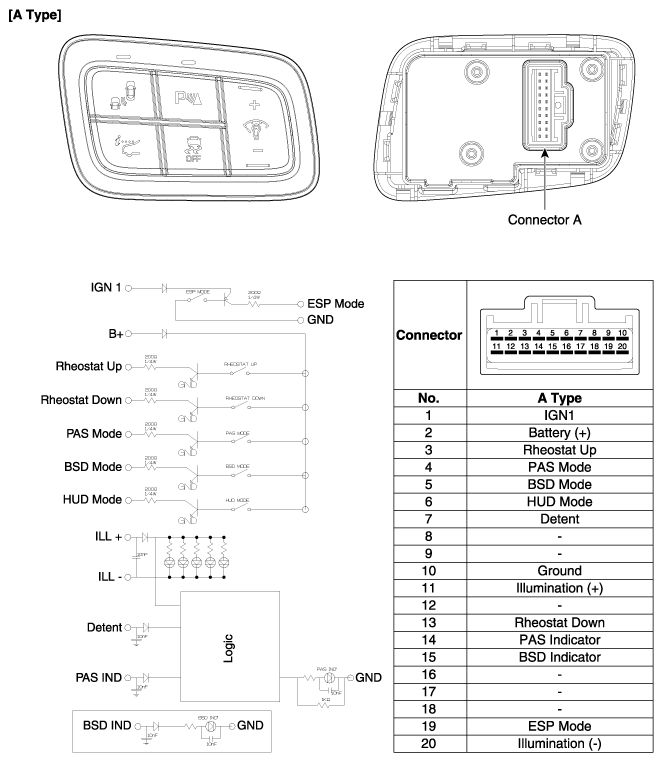

Fig 1: Head Up Display Switch (A Type)
G10387653Courtesy of HYUNDAI MOTOR AMERICA

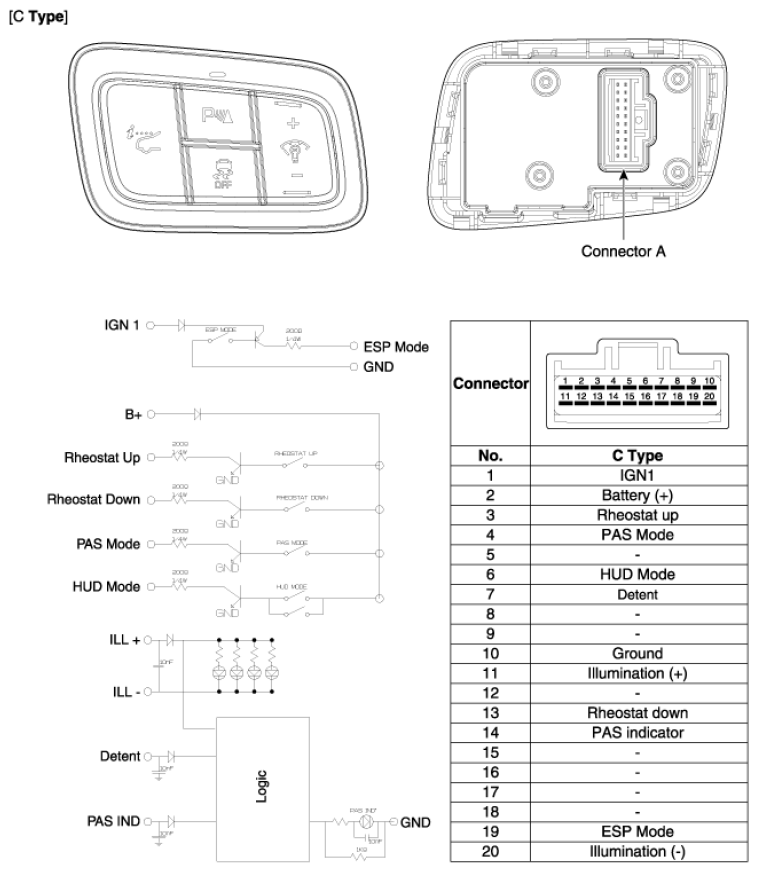

Fig 2: Head Up Display Switch (C Type)
G10387654Courtesy of HYUNDAI MOTOR AMERICA
