Signal Waveform & Data

WARNING: This page is about a different car, the 2015 Hyundai Equus. However, it is still accessible from the selected car via links, so may be relevant.

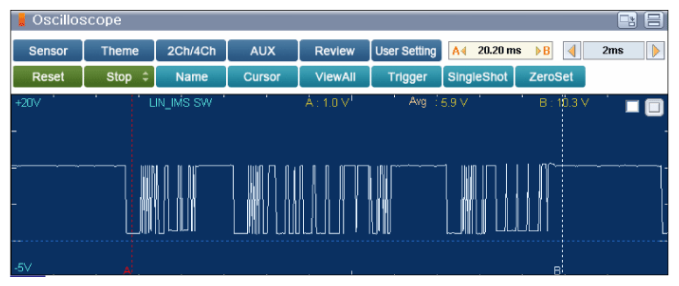

Fig 1: Screen Display - BCM And Rain Sensor LIN Signal Waveform
G10393714Courtesy of HYUNDAI MOTOR AMERICA
