Components and Components Location: Components

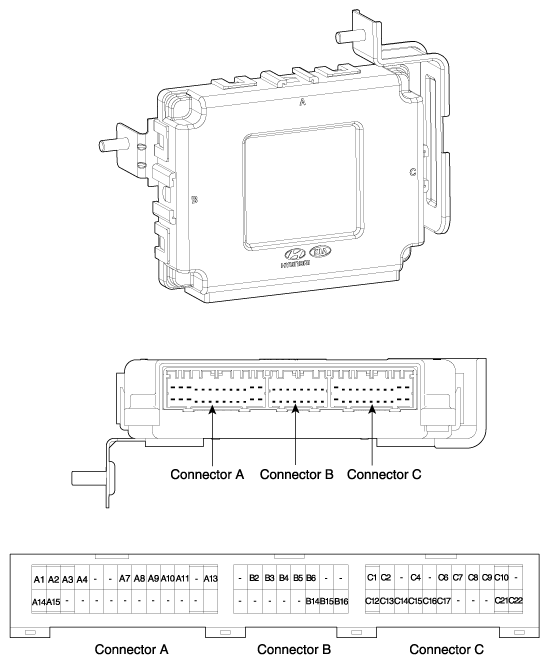

Fig 1: Body Control Module Terminal Identification

Courtesy of HYUNDAI MOTOR AMERICA

NO	Connector A	Connector B	Connector C
1	Battery +	-	Room lamp Output
2	IGN1	ECM Mirror +	Foot lamp Output
3	IGN2	B CAN High	-
4	ACC	B CAN Low	-
5	-	PAS (LIN)	-
6	-	Integrated sensor (LIN)	L_Head lamp washer RLY_OUT
7	Rear Window Defroster switch	-	External buzzer output
8	parking brake switch	-	SSB light output
9	PAS off switch	-	Mood lamp output
10	Rear curtain switch	-	Rear curtain motor down Output
11	sunroof state	-	Rear curtain motor UP Output
12	-	-	ATM Solenoid outputs
13	Trunk open switch	-	Rear Seat belt light output (RH)
14	L_NADRI_OPT_IN	Rear Seat belt light output (LH)	Rear defogger light output
15	L_Deolicated DRI_OPT_IN	Rear Seat belt light output (Center)	PAS on light output
16	-	GND (Power)	safety belt light output (Assist)
17	-		security light output
18	-		-
19	-		-
20	-		-
21	-		GND (Rear curtain motor)
22	-		Rear curtain Power
23	-
24	-
25	-
26	GND
