Components and Components Location: Components

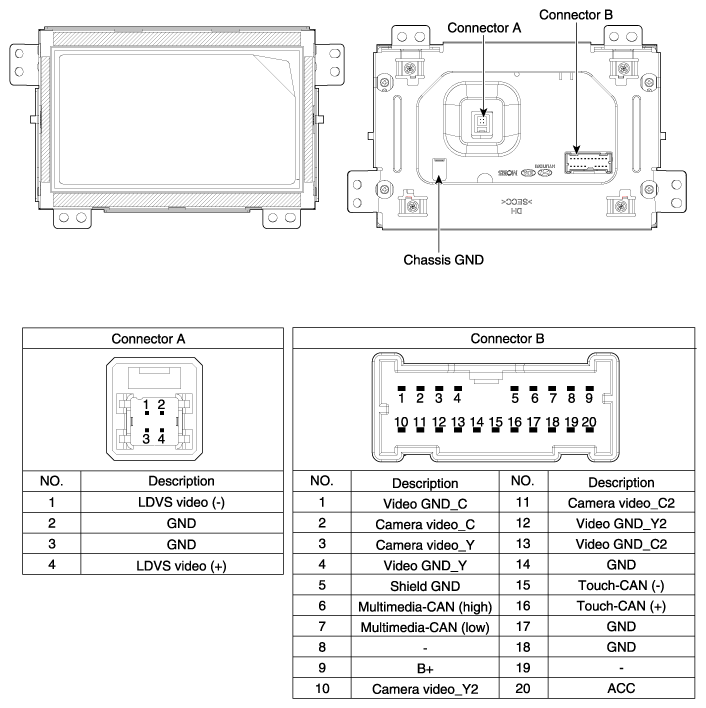

Fig 1: Front LCD Monitor Components And Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
