Components and Components Location: Components

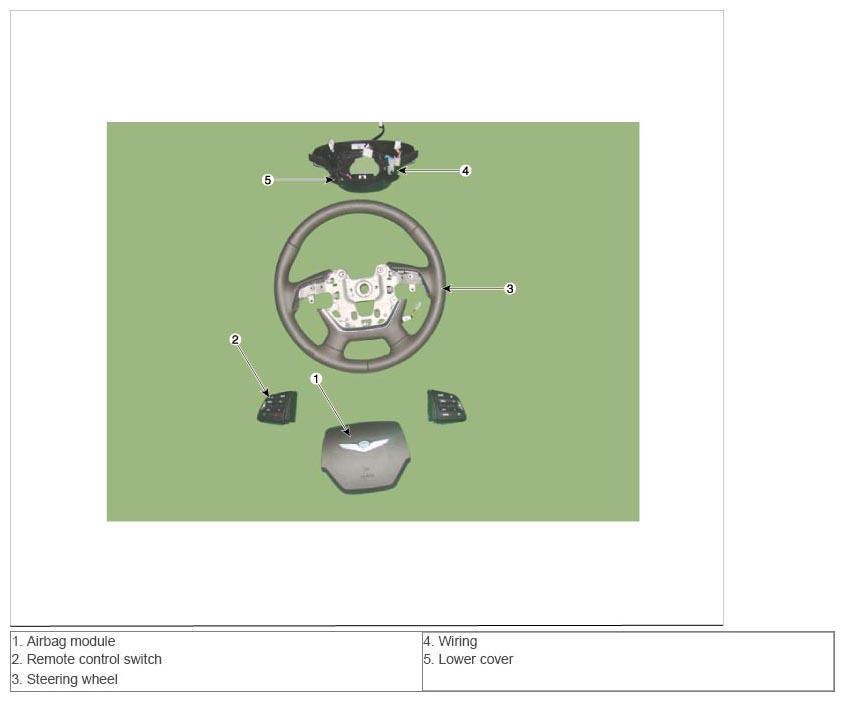

Fig 1: Steering Wheel Components

G10453084

Courtesy of HYUNDAI MOTOR AMERICA
