Components and Components Location: Component

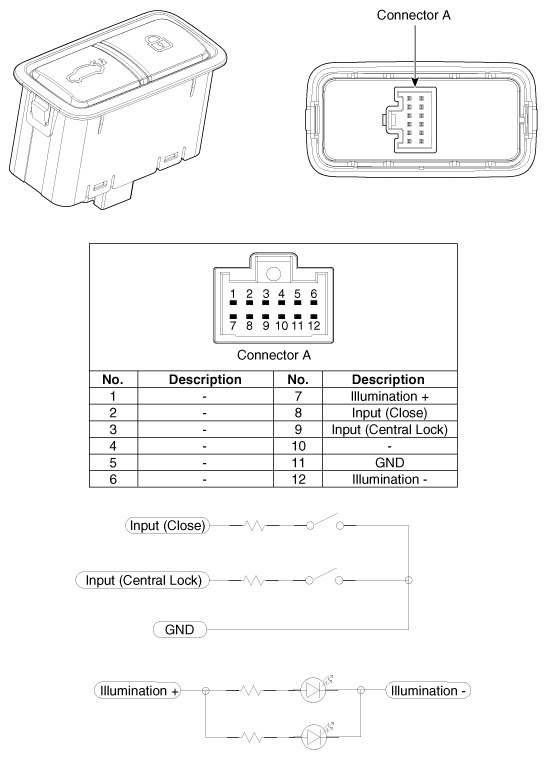

Fig 1: Power Trunk Inner Switch And Terminals

G10454527

Courtesy of HYUNDAI MOTOR AMERICA
