Components Location

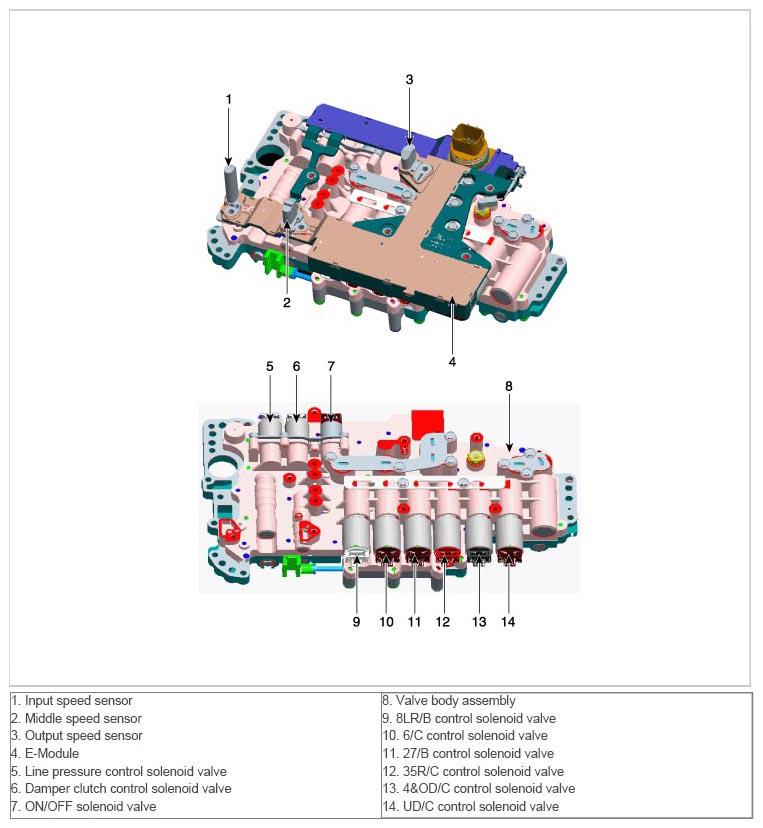

Fig 1: Automatic Transmission Valve Body Components
Courtesy of HYUNDAI MOTOR AMERICA
