Components Location

WARNING: This page is about a different variant/trim than selected.

Vehicle Components

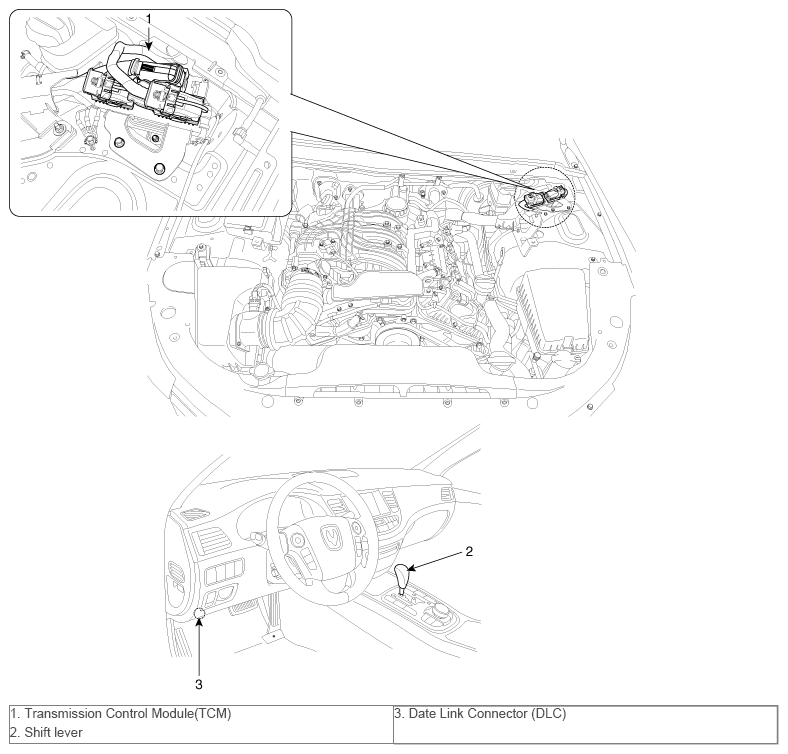

Fig 1: Vehicle Transmission Control Components Location
G10480518Courtesy of HYUNDAI MOTOR AMERICA

Transmission Components

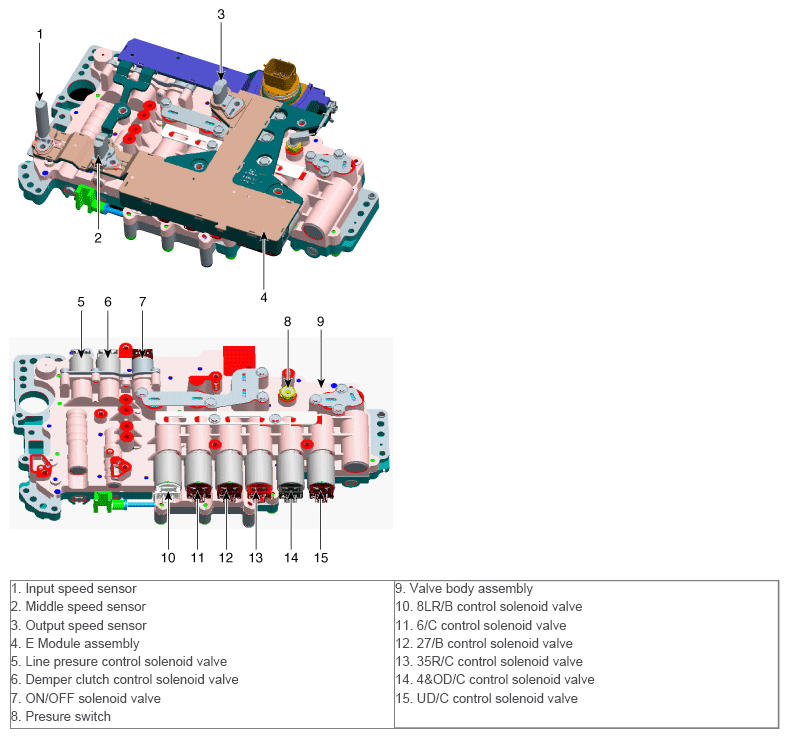

Fig 2: Internal Transmission Control Components Location
G10480519Courtesy of HYUNDAI MOTOR AMERICA
