Fuel Tank

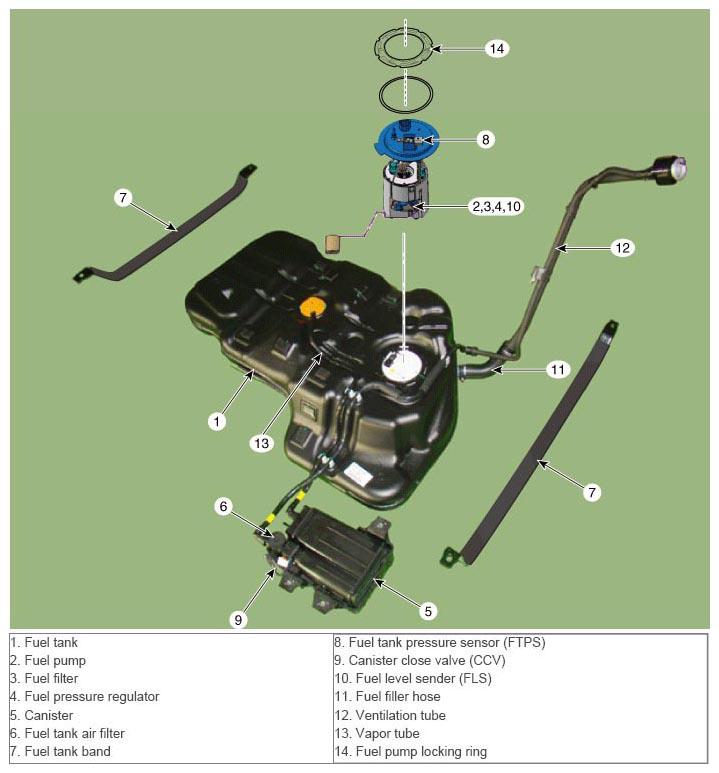

Fig 1: Fuel Tank Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
