Components and Components Location

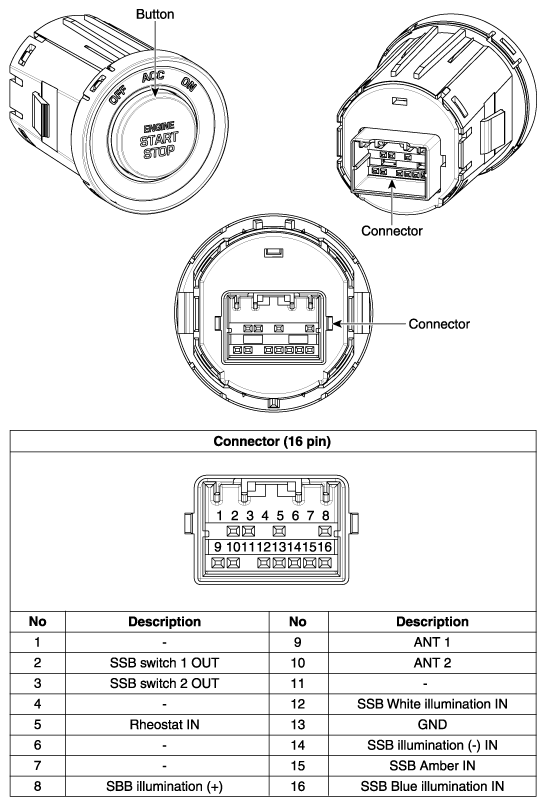

Fig 1: Identifying Start/Stop Button And Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
