Monitor GDS Data

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS.
IG "ON" and Engine "OFF".
Select "DTC Analysis" mode.
After erase DTC, keep the vehicle condition within "the Enable Conditions". (Refer to: "DTC Detecting Condition " table).

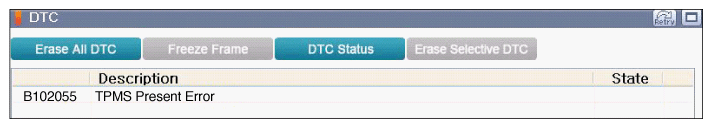

Fig 1: Screen Display - DTC Information
Courtesy of HYUNDAI MOTOR AMERICA
Is the same DTC occurred again?
YES
- After checking installed option on the real vehicle firmly, perform cluster variant coding procedure. And then, Refer to: "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Fault is intermittent caused by poor contact in the TPMS's connector or was repaired and CLU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then Refer to: "VERIFICATION OF VEHICLE REPAIR " procedure.
