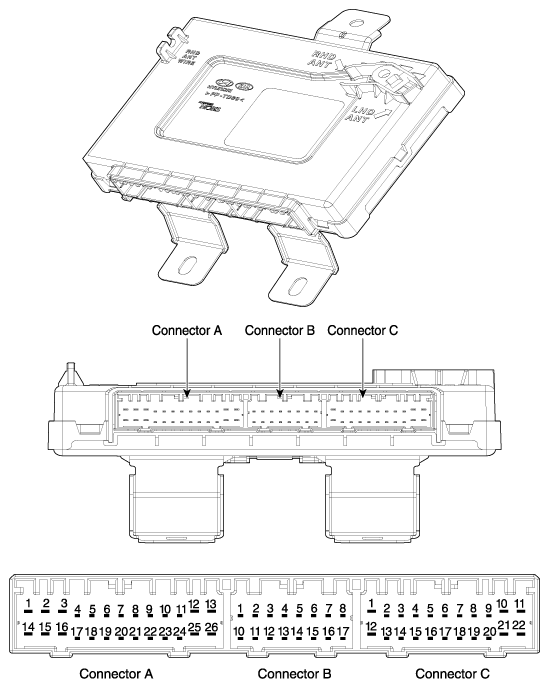

Components And Components Location: Components
WARNING: This page is about a different variant/trim than selected.
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Room lamp_output | GND_MFSW | Trunk release switch_input |
| 2 | Heated handle power_IGN 2 | - | Brake switch_input |
| 3 | heated handle_output | Auto light power_output | Fog lamp switch_input |
| 4 | - | - | Head lamp high switch_input |
| 5 | Safety power window enable_output | - | Light switch_input |
| 6 | Rear foglamp relay | Wiper INT volume switch_input | Wiper switch_input |
| 7 | Wiper low relay_output | Body CAN (High) | Wiper low switch_input |
| 8 | Key hole illumination_output | Body CAN (Low) | Washer switch_input |
| 9 | Headlamp washer relay | Auto light GND_output | Heated handle NTC sensor_input |
| 10 | Wiper high relay_output | RPAS LIN Communication | IGN 1 |
| 11 | Courtesy lamp_output (Assist) | Rain sensor LIN communication | Battery (+) |
| 12 | Courtesy lamp_output (Driver) | Reserved switch | Ground |
| 13 | Ground | - | Heated handle switch_input |
| 14 | Ground | Diagnosis | - |
| 15 | Pocket lamp_output | PAS_input (Option) | Rear defogger switch_input |
| 16 | Mirror folding relay | AIR BAG signal_input | RPAS off switch_input |
| 17 | Mirror unfolding relay | Ket interlock switch_input | |
| 18 | Security indicator_output | Sunroof open switch_input | |
| 19 | RPAS off switch indicator_output | Blade position_input | |
| 20 | - | Auto light sensor_input | |
| 21 | AV Tail lamp_output | ACC | |
| 22 | - | IGN 2 | |
| 23 | Heated handle indicator_output | ||
| 24 | - | ||
| 25 | Key solenoid_output | ||
| 26 | AT solenoid_output |
