Components Location

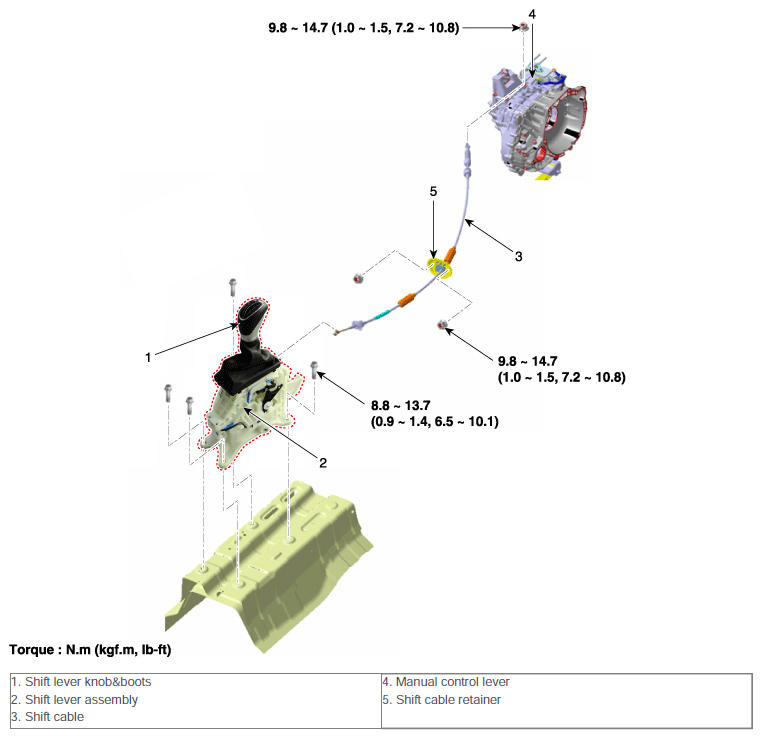

Fig 1: Identifying Shift Lever Related Components With Torque Specifications (1 Of 2)
G10571240Courtesy of HYUNDAI MOTOR AMERICA
