Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

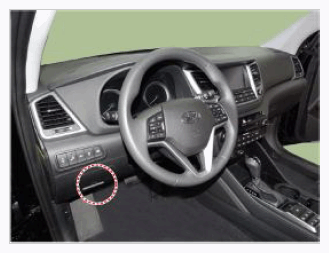

Fig 1: Smart Key Code Location
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart Key Code Saving".

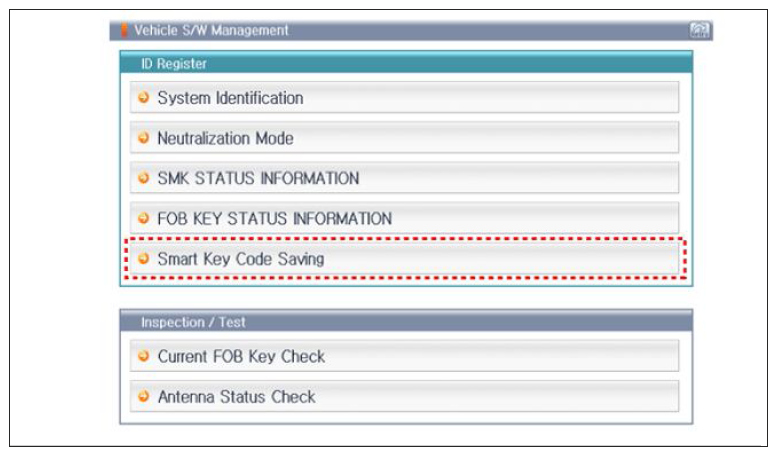

Fig 2: Display - Vehicle Model Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart Key Teaching" menu, push "ENTER" key, then the screen will be displayed below.

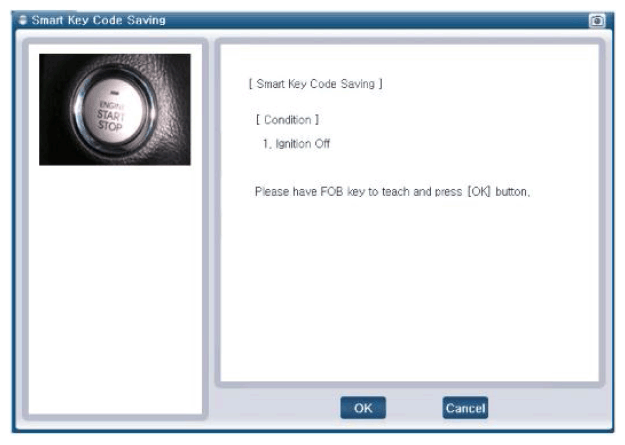

Fig 3: Display - Smart Key Teaching Menu Screen
Courtesy of HYUNDAI MOTOR AMERICA
After having the teaching smart key, push "ENTER" key.
Input the "Pin Code" for first key teaching.

Fig 4: Display - Pin Code Menu Screen
Courtesy of HYUNDAI MOTOR AMERICA

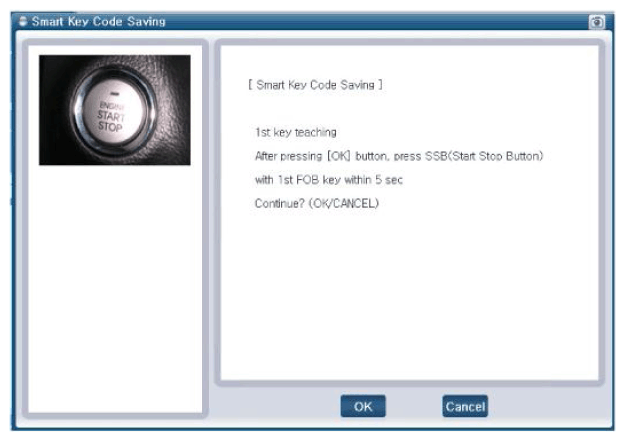

Fig 5: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

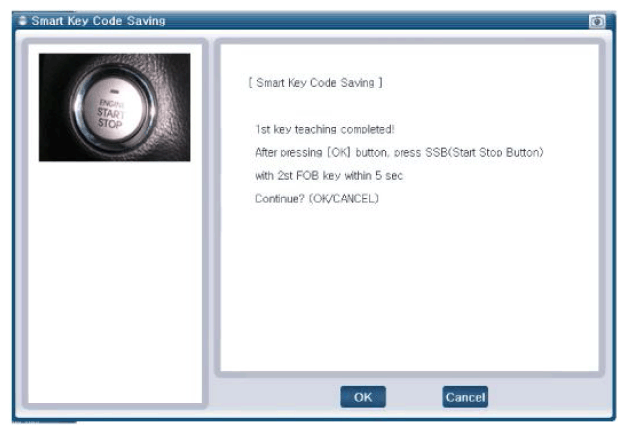

Fig 6: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First Key Teaching Completed".

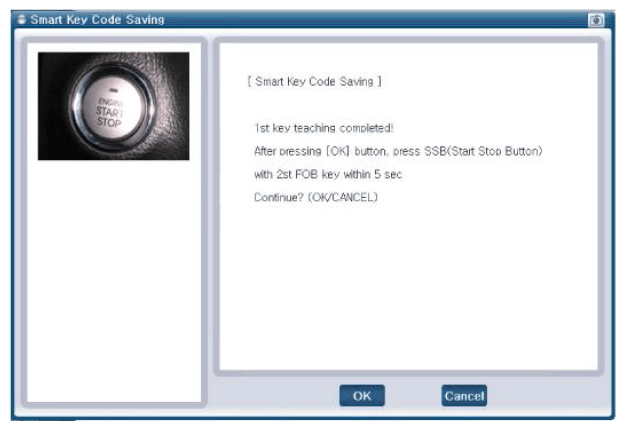

Fig 7: Display - First Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 8: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second Key Teaching Completed".

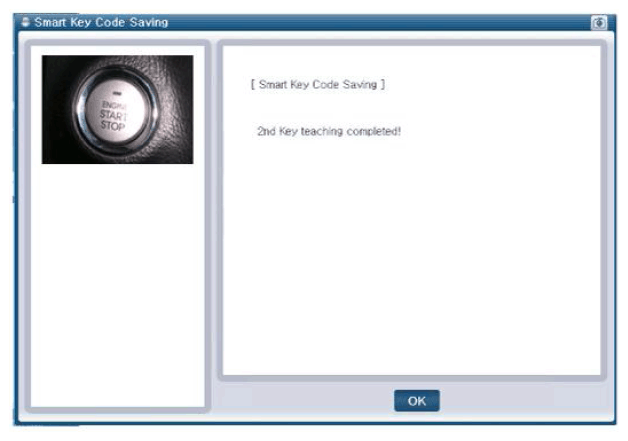

Fig 9: Display - Second Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be displayed below when key teaching process is completed.

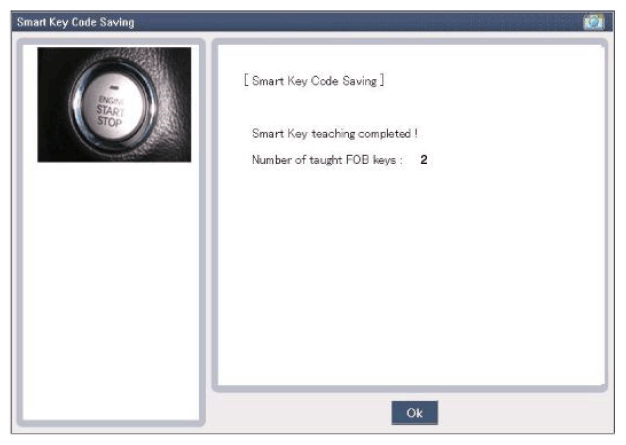

Fig 10: Display - Smart Key Code Saving Screen
