Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization Mode".

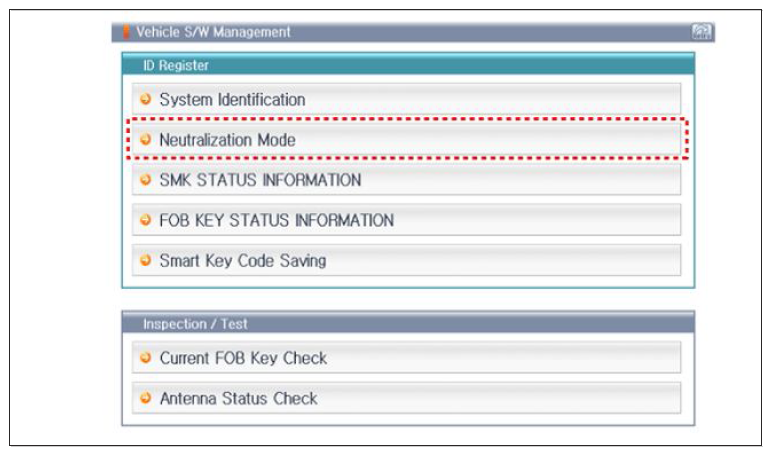

Fig 1: Display - Neutralization Status Check
Courtesy of HYUNDAI MOTOR AMERICA

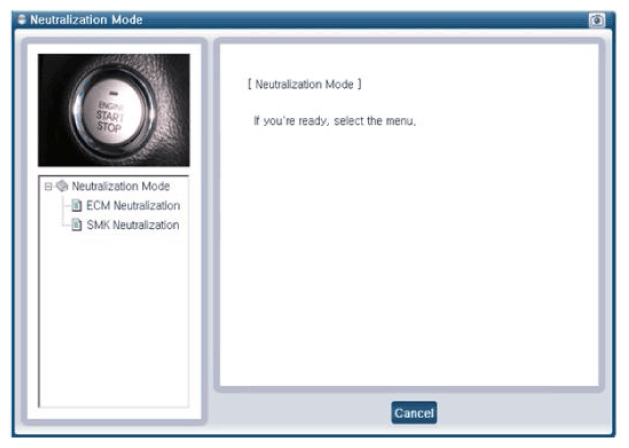

Fig 2: Display - Neutralization Mode Screen
Courtesy of HYUNDAI MOTOR AMERICA

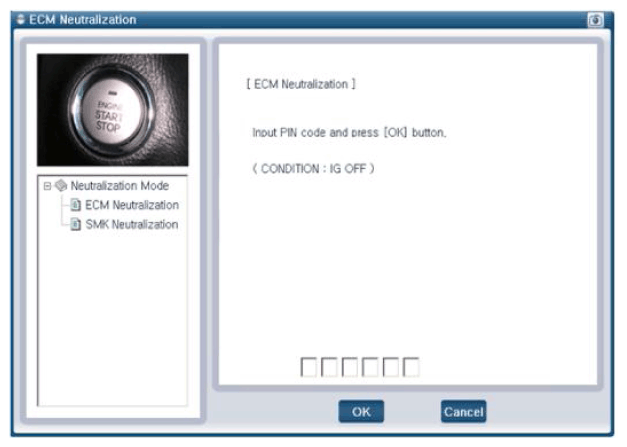

Fig 3: Display - ECM Neutralization Mode Screen
Courtesy of HYUNDAI MOTOR AMERICA

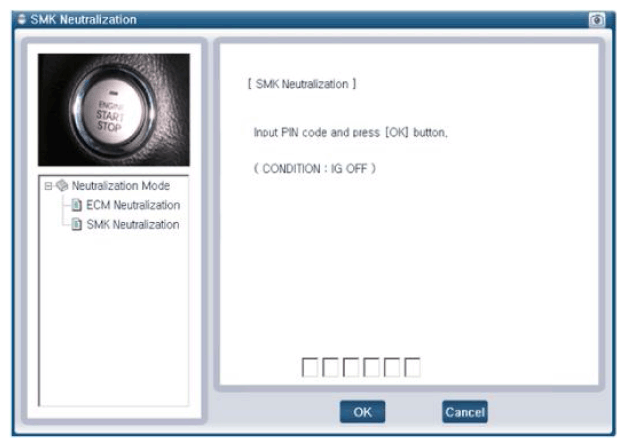

Fig 4: Display - SMK Neutralization Mode Screen
Courtesy of HYUNDAI MOTOR AMERICA
