Smart Key Code Saving

Connect the DLC cable of GDS to the Data Link Connector in driver side Crash Pad Lower Panel, turn the Power ON GDS.

Fig 1: Locating Driver Side Crash Pad Lower Panel Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart Key Code Saving".

Fig 2: Smart Key Code Saving - Screen Display (1 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart Key Teaching" menu, push "Enter" Key, then the screen will be displayed.

Fig 3: Smart Key Code Saving - Screen Display (2 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

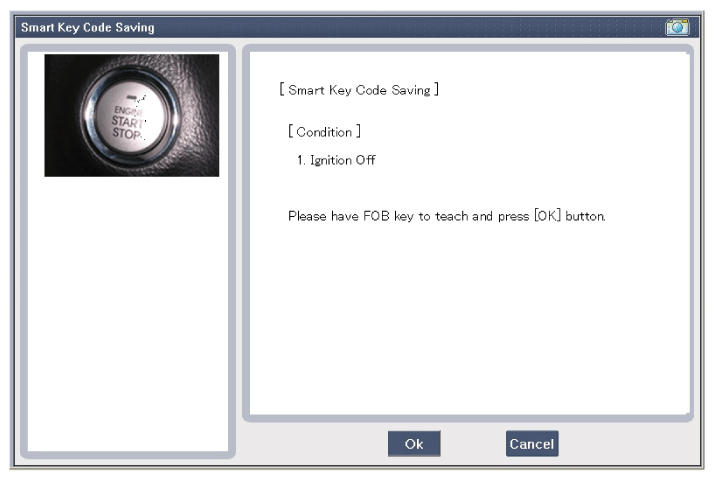

After pushing the SSB with the teaching Key, press "OK" button.
Input the "Pin Code" for first Key teaching.

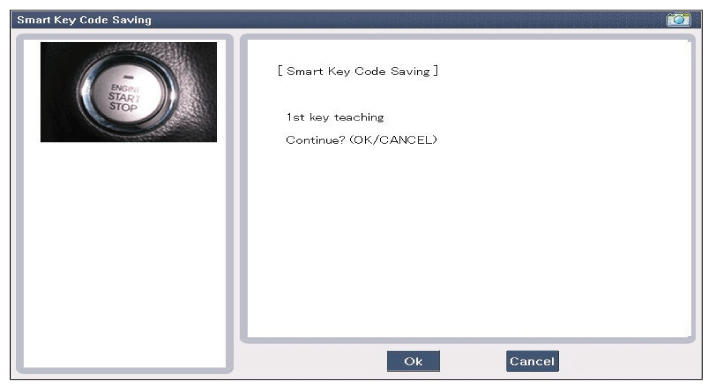

Fig 4: Smart Key Code Saving - Screen Display (3 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Smart Key Code Saving - Screen Display (4 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

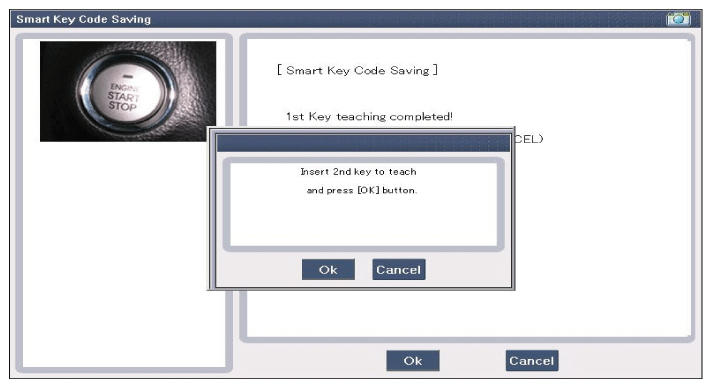

Confirm the message "First Key Teaching Completed".

Fig 6: Smart Key Code Saving - Screen Display (5 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Smart Key Code Saving - Screen Display (6 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Smart Key Code Saving - Screen Display (7 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Smart Key Code Saving - Screen Display (8 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second Key Teaching Completed".

Fig 10: Smart Key Code Saving - Screen Display (9 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be displayed when Key Teaching process is completed.
