Projected Dimensions

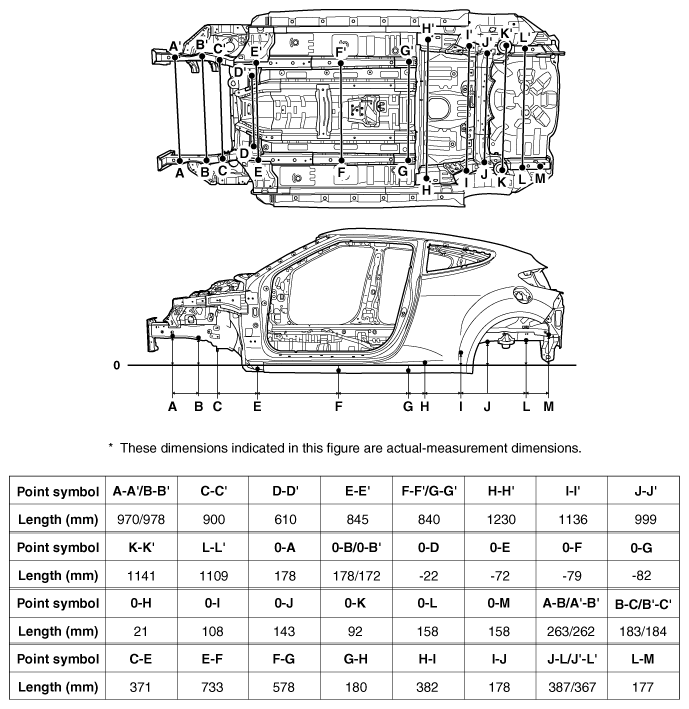

Fig 1: Identifying Under Body Projected Dimensions (1 Of 3)
G10605237Courtesy of HYUNDAI MOTOR AMERICA

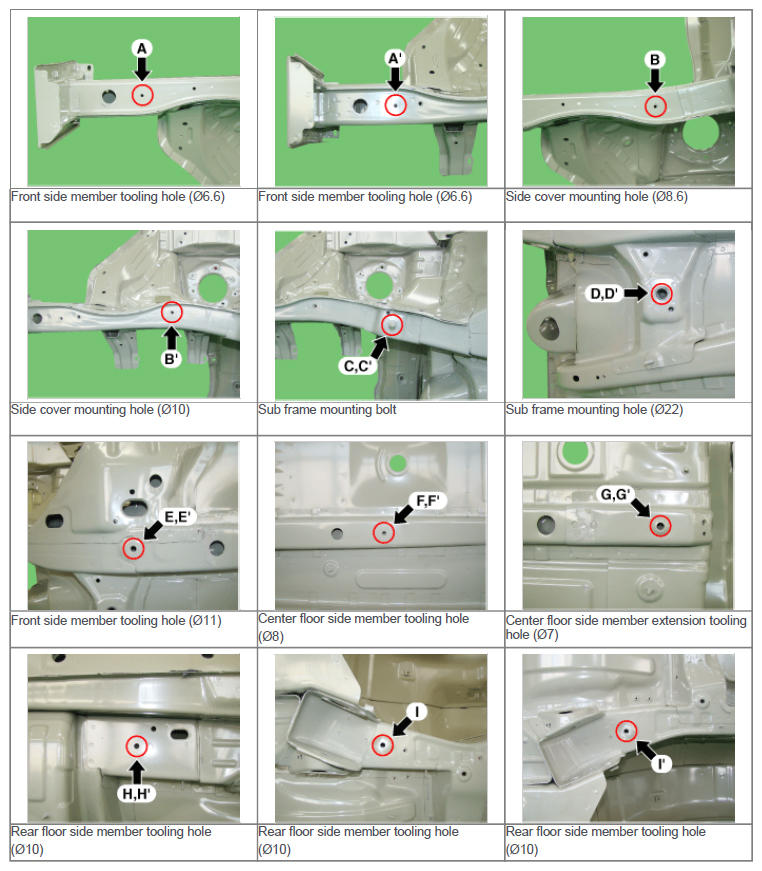

Fig 2: Identifying Under Body Projected Dimensions (2 Of 3)
G10605238Courtesy of HYUNDAI MOTOR AMERICA

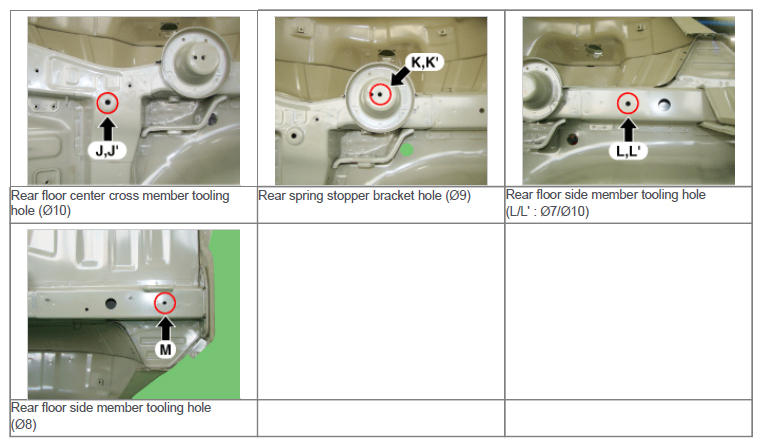

Fig 3: Identifying Under Body Projected Dimensions (3 Of 3)
G10605239Courtesy of HYUNDAI MOTOR AMERICA
