Charging System
CHARGING SYSTEM SPECIFICATIONS
| Items | Specification | ||
|---|---|---|---|
| Alternator | Rated voltage | 13.5V, 90A | |
| Speed in use | 1, 000 ~ 18, 000 RPM | ||
| Voltage regulator | IC Regulator built-in type | ||
| Regulator setting voltage | External mode | ECU control | |
| Internal mode | 14.55 ± 0.3V | ||
| Temperature compensation | External mode | ECU control | |
| Internal mode | -3.5 ± 2mV/°C | ||

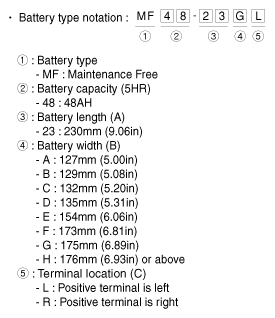

| Battery | Type | 36 - 20 GL | |
| Cold cranking amperage | 410A | ||
| [at -18°C (-0.4°F)] | |||
| Reserve capacity | 80min | ||
| Specific gravity [at 25°C (77°F)] | 1.280 ± 0.01 | ||
NOTE:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C (80.1°F).
