Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.

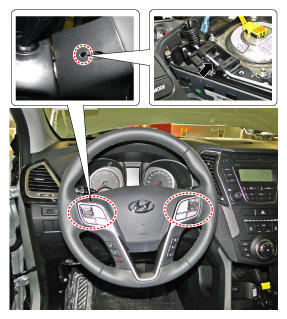

  2. Remove the driver airbag module by putting in a flat tool (Ø5mm) into the guide hole and then press the omega spring.
    Fig 1: Removing Driver Airbag Module
    G12056309Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the wiring fixing clip (C) and disconnect the horn connector (A).
    Fig 2: Disconnecting Horn Connector
    G12056310Courtesy of HYUNDAI MOTOR AMERICA
  4. Release the connector locking pin, then disconnect the driver airbag module connector (C).
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  5. Remove the steering wheel and steering wheel column shroud.

    (Refer to MDPS COLUMN AND HOUSING Steering System - )

    Fig 3: Removing Steering Wheel And Steering Wheel Column Shroud
    G12056311Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the clock spring and horn connector, then remove the clock spring.
Fig 4: Disconnecting Clock Spring And Horn Connector
G12056312Courtesy of HYUNDAI MOTOR AMERICA
