Components And Components Location: Components

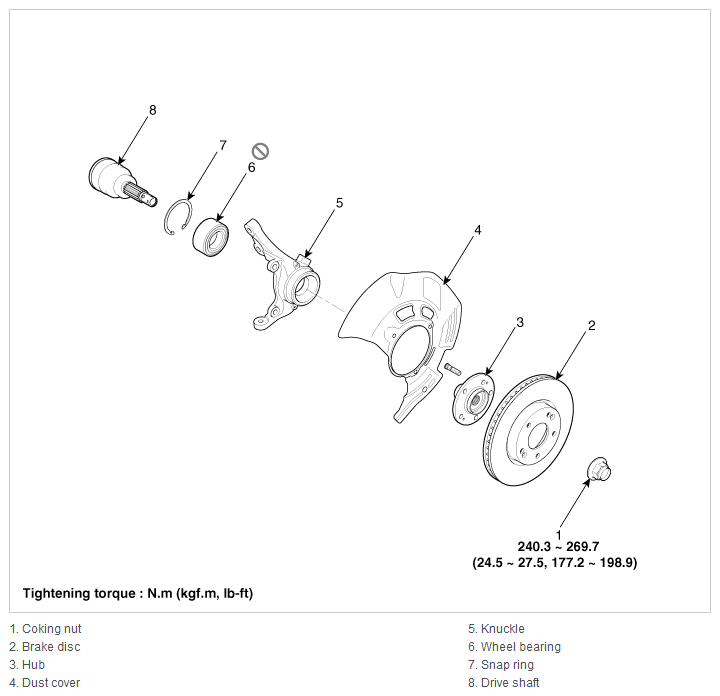

Fig 1: Exploded View Of Front Hub - Axle Components With Torque Specification
G12089229Courtesy of HYUNDAI MOTOR AMERICA
