Circuit Diagram

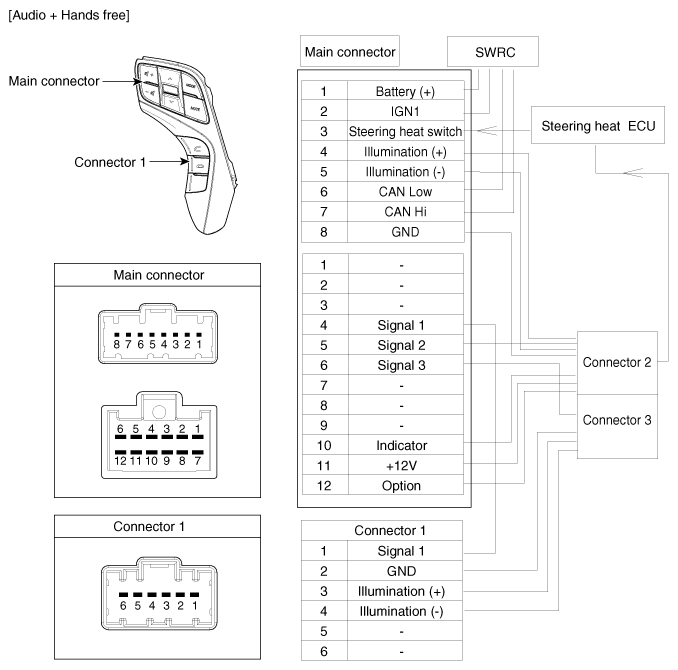

Fig 1: AVN Remote Controller Circuit (1 Of 2)
G12091675Courtesy of HYUNDAI MOTOR AMERICA

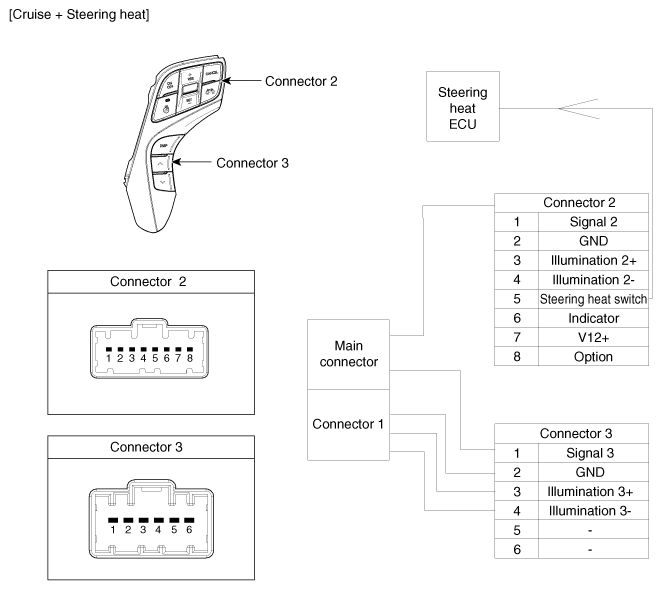

Fig 2: AVN Remote Controller Circuit (2 Of 2)
G12091676Courtesy of HYUNDAI MOTOR AMERICA
