Repair Procedures: Replacement

CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Take care not to scratch the body surface.
  • Put on gloves to protect your hands.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the console rear complete & console front complete assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  4. Remove the cowl side trim.

    (Refer to Interior Trim - "COWL SIDE TRIM ")

  5. Remove the instrument cluster.
  6. Remove the steering column shroud panel.

    (Refer to Crash Pad - "Steering Column Shroud Panel ")

  7. Remove the AVN head unit.
  8. Remove the glove box housing.

    (Refer to Crash Pad - "Glove Box Housing ")

  9. Disconnect the steering column connectors.
  10. Down the steering column after loosening the mounting bolts.
  11. After loosening the mounting screws, then remove the crash pad garnish [RH] (A).
    Fig 1: Locating Crash Pad Garnish (RH) With Mounting Screws
    G12091442Courtesy of HYUNDAI MOTOR AMERICA
  12. Disconnect the connector (A).
    Fig 2: Locating Connector
    G12091443Courtesy of HYUNDAI MOTOR AMERICA
  13. After loosening the mounting screws, then remove the crash pad main lower panel (A).
    Fig 3: Locating Crash Pad Main Lower Panel With Mounting Screws
    G12091444Courtesy of HYUNDAI MOTOR AMERICA
  14. After loosening the mounting screw, then remove the air duct assembly (A).
    Fig 4: Locating Air Duct Assembly With Mounting Screws
    G12091445Courtesy of HYUNDAI MOTOR AMERICA
  15. Using a screwdriver or remover, remove the center speaker grille (A).
    Fig 5: Locating Center Speaker Grille With Mounting Screws
    G12091446Courtesy of HYUNDAI MOTOR AMERICA
  16. After loosening the mounting screws, then remove the center speaker assembly (A).
    Fig 6: Locating Center Speaker Assembly With Mounting Screws
    G12091447Courtesy of HYUNDAI MOTOR AMERICA
  17. Disconnect the center speaker connectors (A).
    Fig 7: Locating Center Speaker Connectors
    G12091448Courtesy of HYUNDAI MOTOR AMERICA
  18. Disconnect the start/stop button connector (A).
    Fig 8: Locating Start/Stop Button Connector
    G12091449Courtesy of HYUNDAI MOTOR AMERICA
  19. After loosening the mounting screws, then remove the cubis assembly (A).
  20. Disconnect the connector (B).
    Fig 9: Locating Cubis Assembly And Connector With Mounting Screws
    G12091450Courtesy of HYUNDAI MOTOR AMERICA
  21. After loosening the mounting screws, then remove the joint block (A).
    Fig 10: Locating Joint Block With Mounting Screws
    G12091451Courtesy of HYUNDAI MOTOR AMERICA
  22. Disconnect the passenger's airbag connector (A).
  23. Loosen the mounting bolts.
    Fig 11: Locating Passenger's Airbag Connector With Mounting Bolts
    G12091452Courtesy of HYUNDAI MOTOR AMERICA
  24. Using a screwdriver or remover, remove the photo sensor (A).
  25. Disconnect the photo sensor connector (B).
    Fig 12: Locating Photo Sensor And Connector
    G12091453Courtesy of HYUNDAI MOTOR AMERICA
  26. Disconnect the passenger's airbag connectors (A).
    Fig 13: Locating Passenger's Airbag Connectors
    G12091454Courtesy of HYUNDAI MOTOR AMERICA
  27. Disconnect the speaker [LH, RH] connectors (A).
    Fig 14: Locating Speaker (LH And RH) Connectors
    G12091455Courtesy of HYUNDAI MOTOR AMERICA
  28. After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).

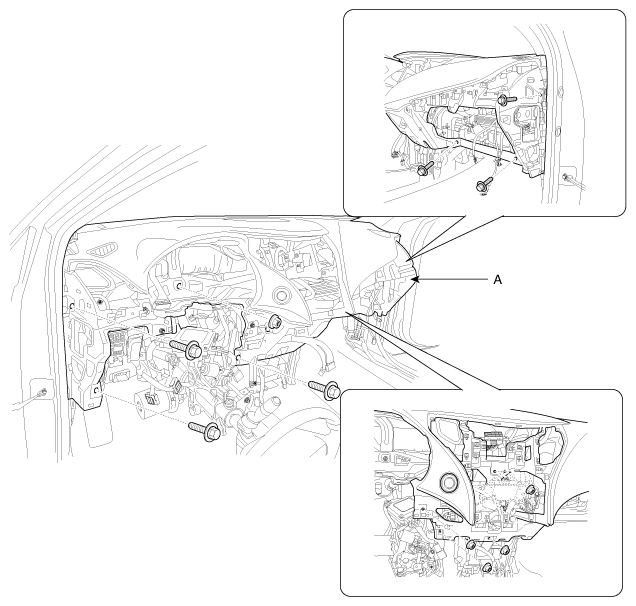

    Fig 15: Locating Main Crash Pad Assembly With Mounting Bolts And Nuts
    G12091456Courtesy of HYUNDAI MOTOR AMERICA
  29. Installation is the reverse of removal.
    NOTE:
    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti- theft code for the radio, then enter the customer's radio station presets.
