Front Body A

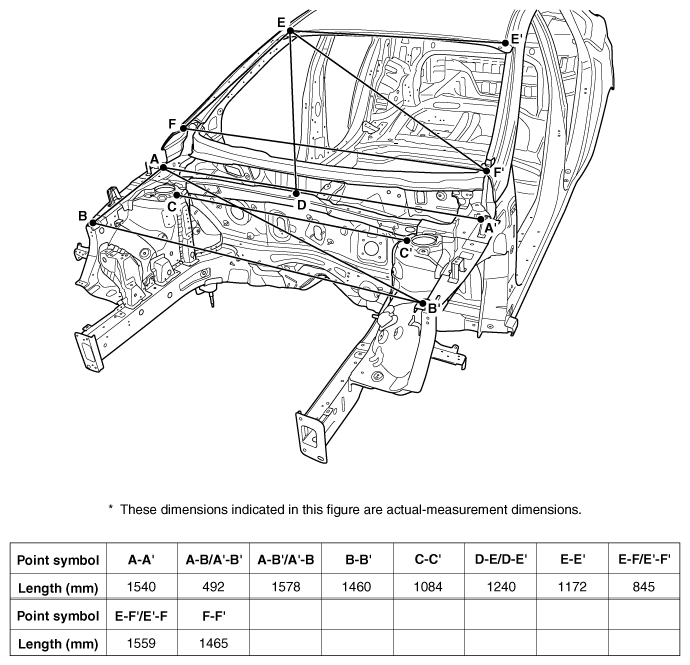

Fig 1: Front Body A Measurement Points (1 Of 2)
G12091201Courtesy of HYUNDAI MOTOR AMERICA

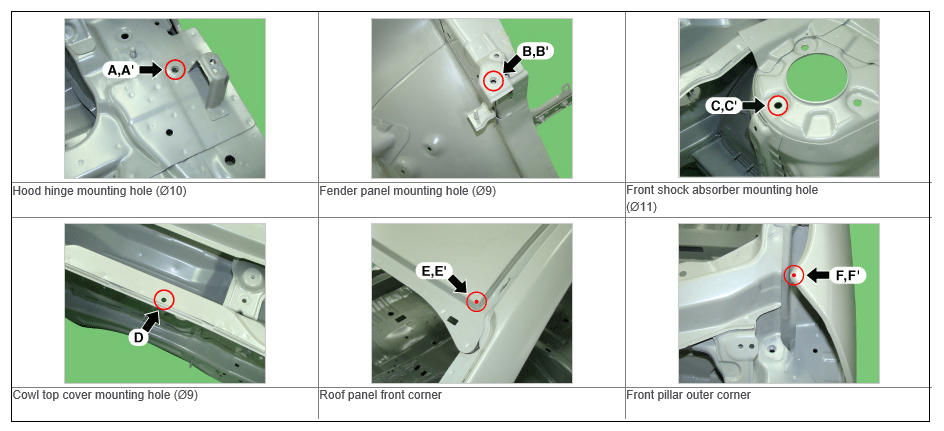

Fig 2: Locating Front Body A Mounting Holes (2 Of 2)
G12091202Courtesy of HYUNDAI MOTOR AMERICA
