Front Body C

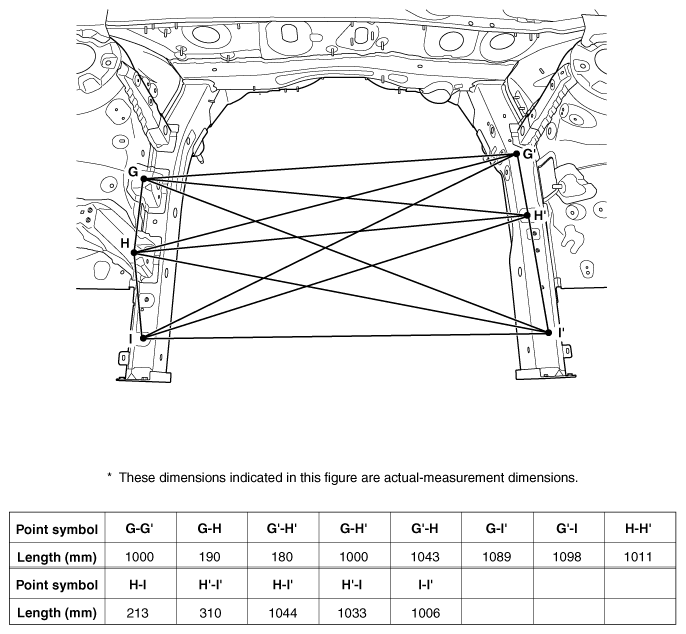

Fig 1: Front Body C Measurement Points
G12091205Courtesy of HYUNDAI MOTOR AMERICA

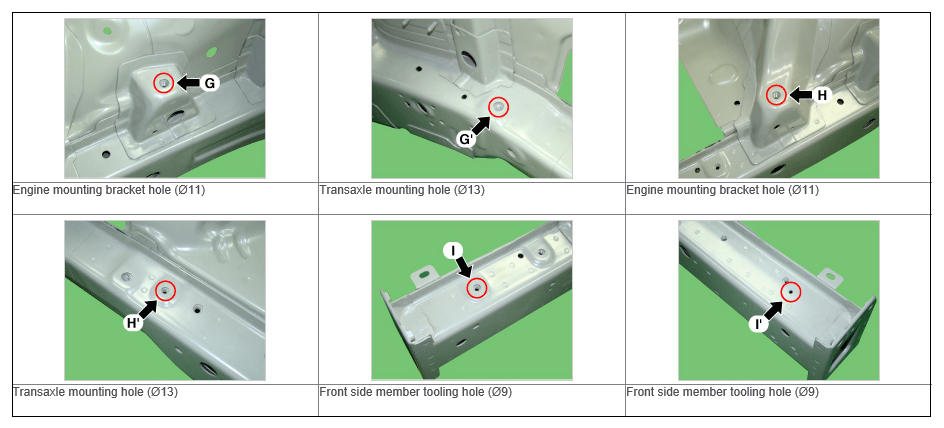

Fig 2: Locating Front Body C Mounting Holes
G12091206Courtesy of HYUNDAI MOTOR AMERICA
