Interior A

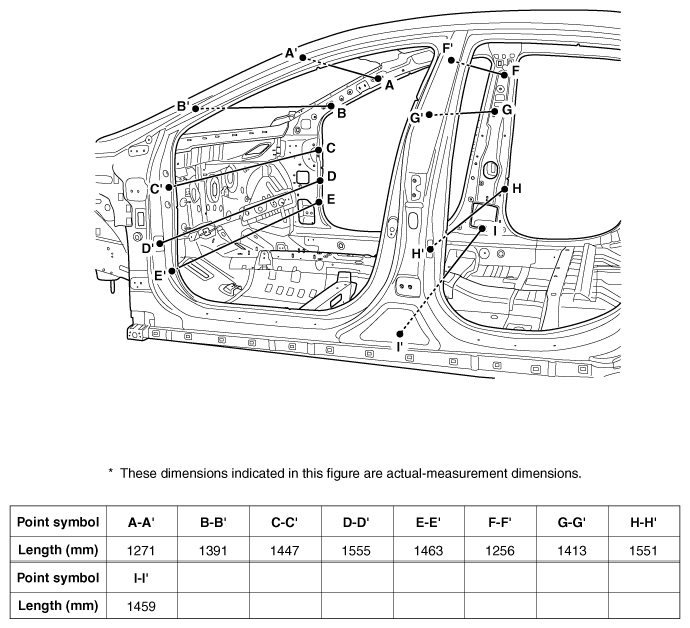

Fig 1: Interior A Measurement Points
G12091211Courtesy of HYUNDAI MOTOR AMERICA

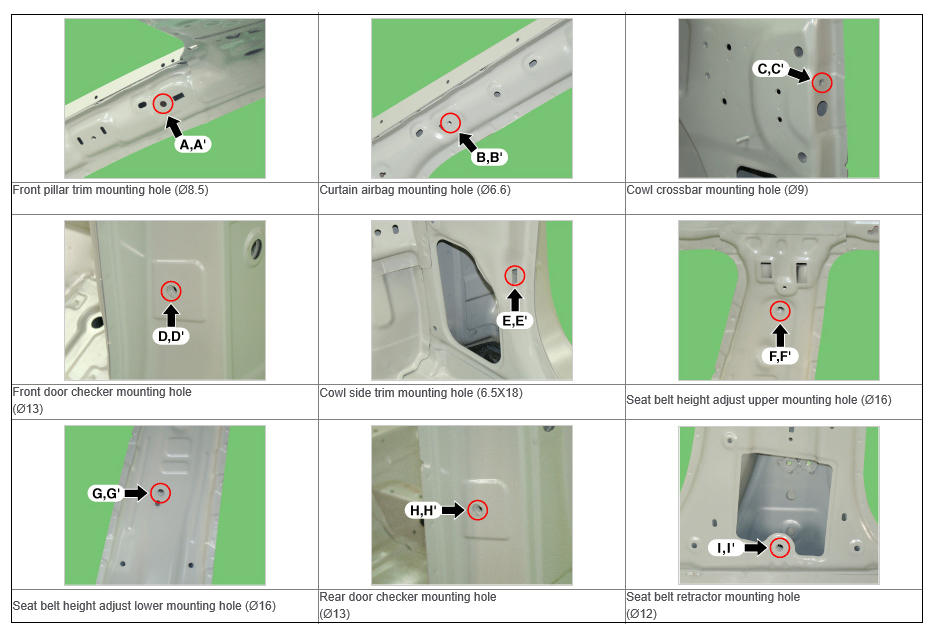

Fig 2: Locating Interior A Mounting Holes
G12091212Courtesy of HYUNDAI MOTOR AMERICA
