Interior B

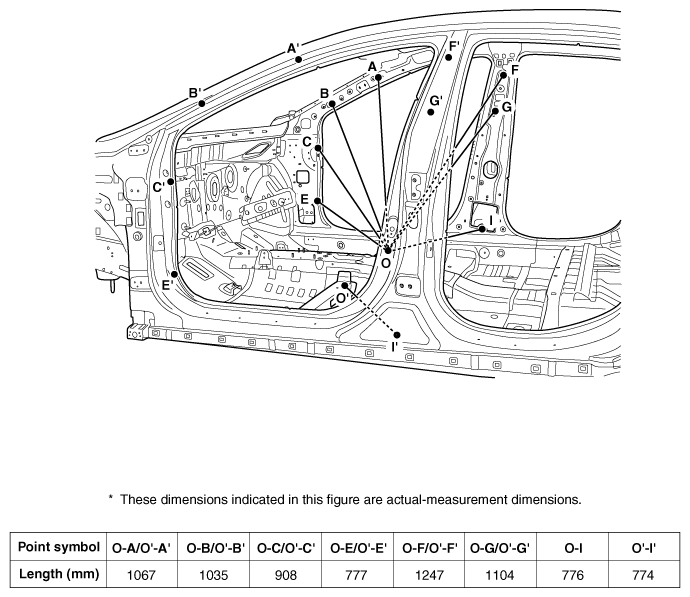

Fig 1: Interior B Measurement Points
G12091213Courtesy of HYUNDAI MOTOR AMERICA

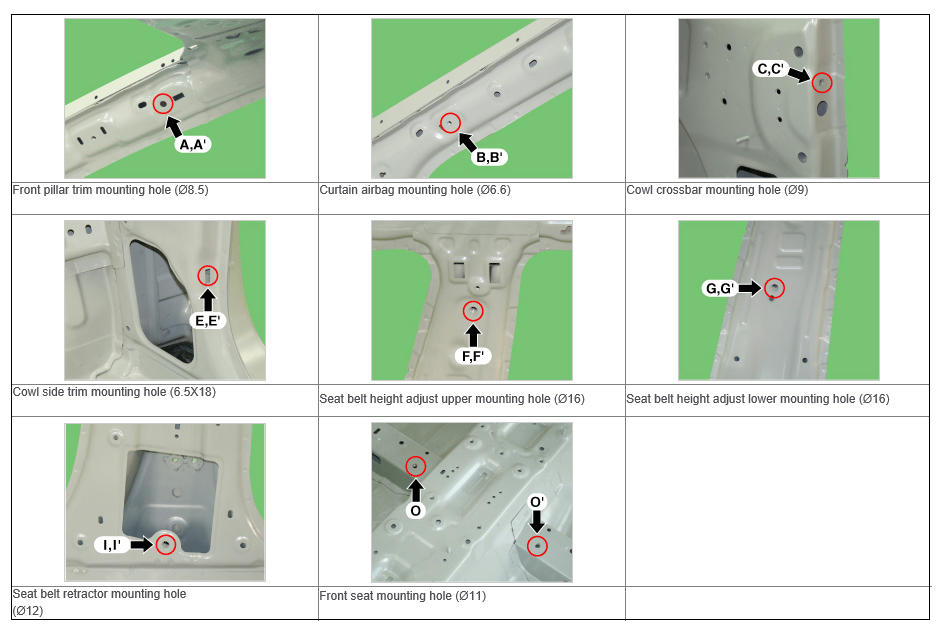

Fig 2: Locating Interior B Mounting Holes
G12091214Courtesy of HYUNDAI MOTOR AMERICA
