Interior D

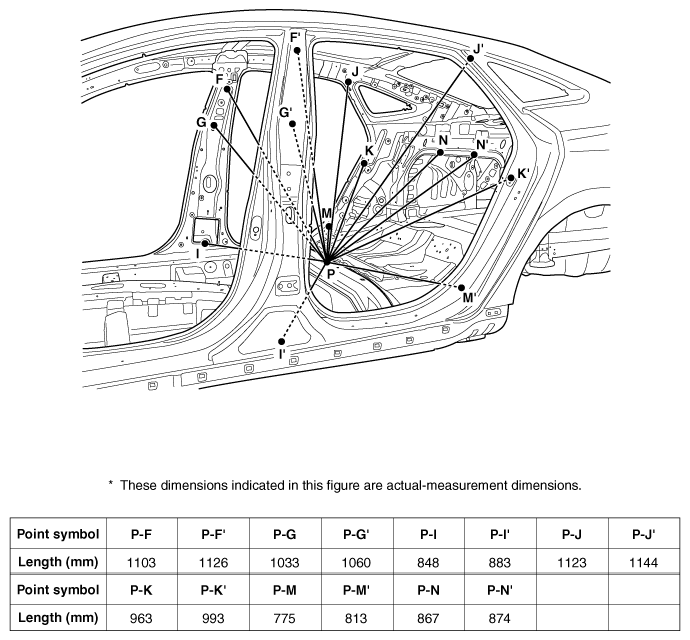

Fig 1: Interior D Measurement Points
G12091217Courtesy of HYUNDAI MOTOR AMERICA

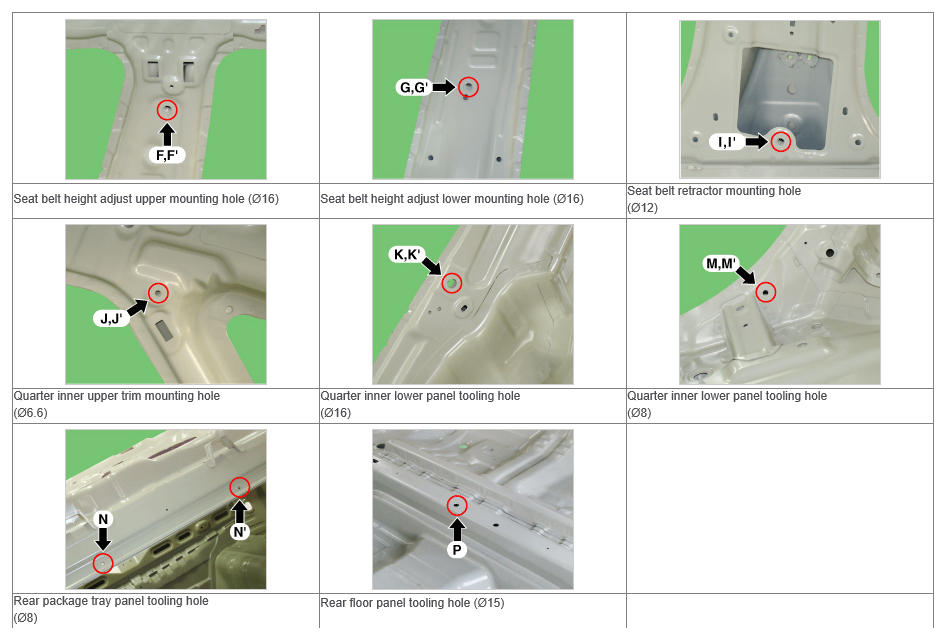

Fig 2: Locating Interior D Mounting Holes
G12091218Courtesy of HYUNDAI MOTOR AMERICA
