Projected Dimensions

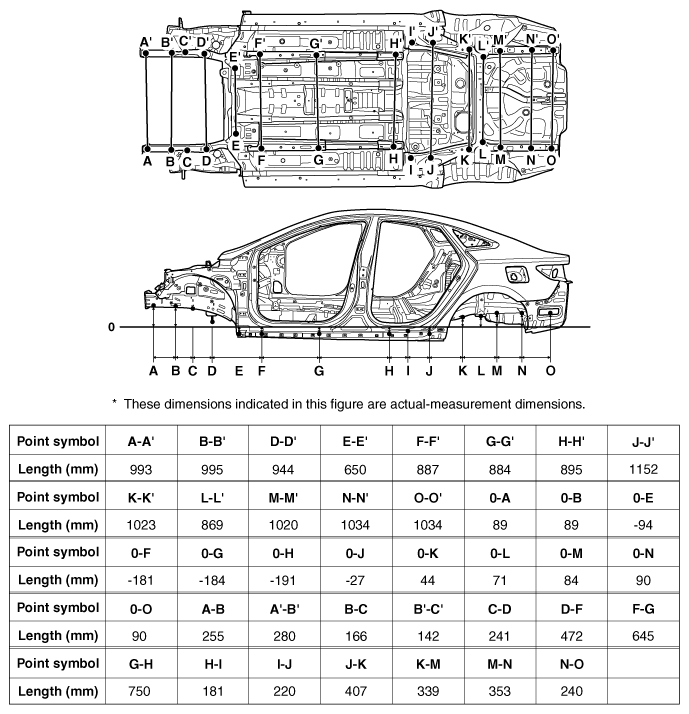

Fig 1: Under Body Measurement Points - Projected Dimensions

Courtesy of HYUNDAI MOTOR AMERICA

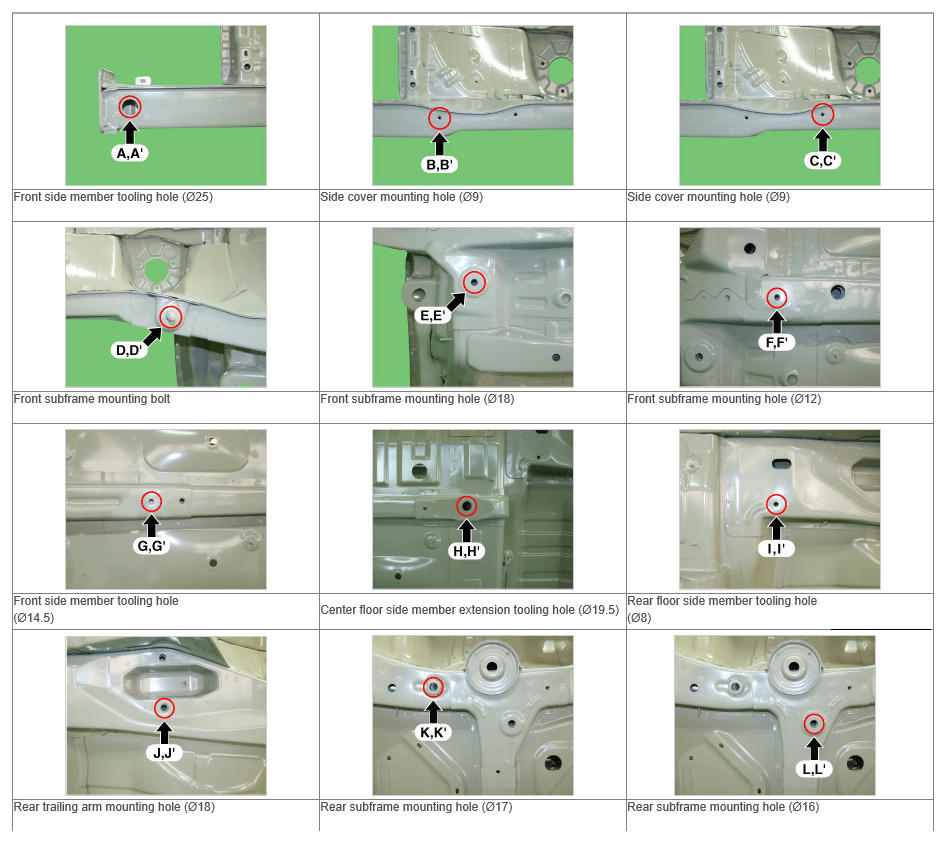

Fig 2: Locating Under Body Mounting Holes - Projected Dimensions (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

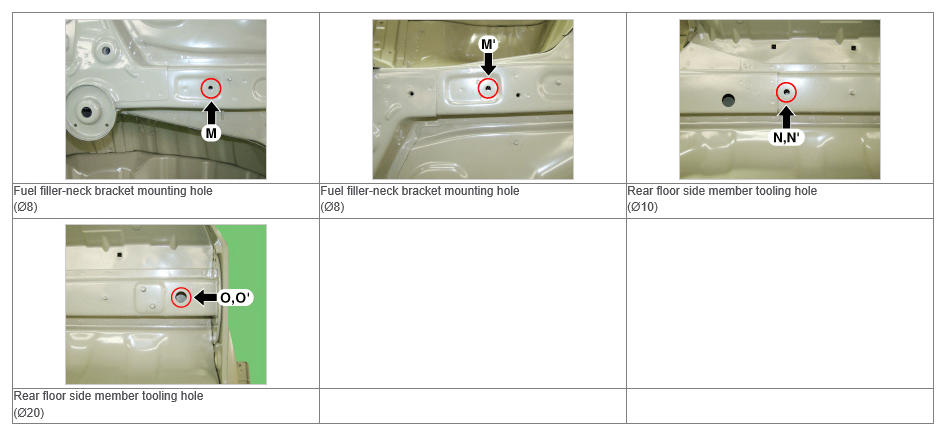

Fig 3: Locating Under Body Mounting Holes - Projected Dimensions (2 Of 2)
