Components Location

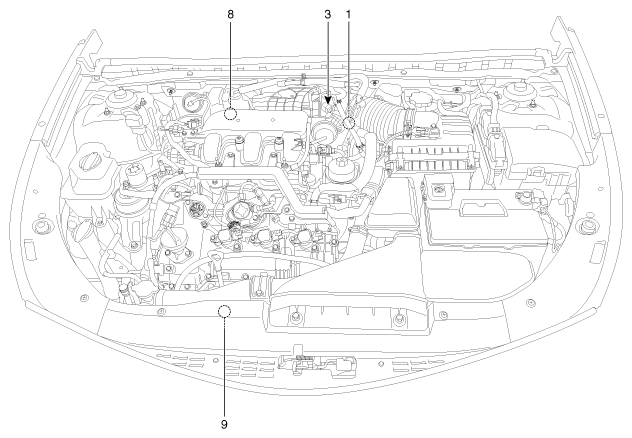

Fig 1: Emission Control System Components (1 Of 4)
G12089177Courtesy of HYUNDAI MOTOR AMERICA

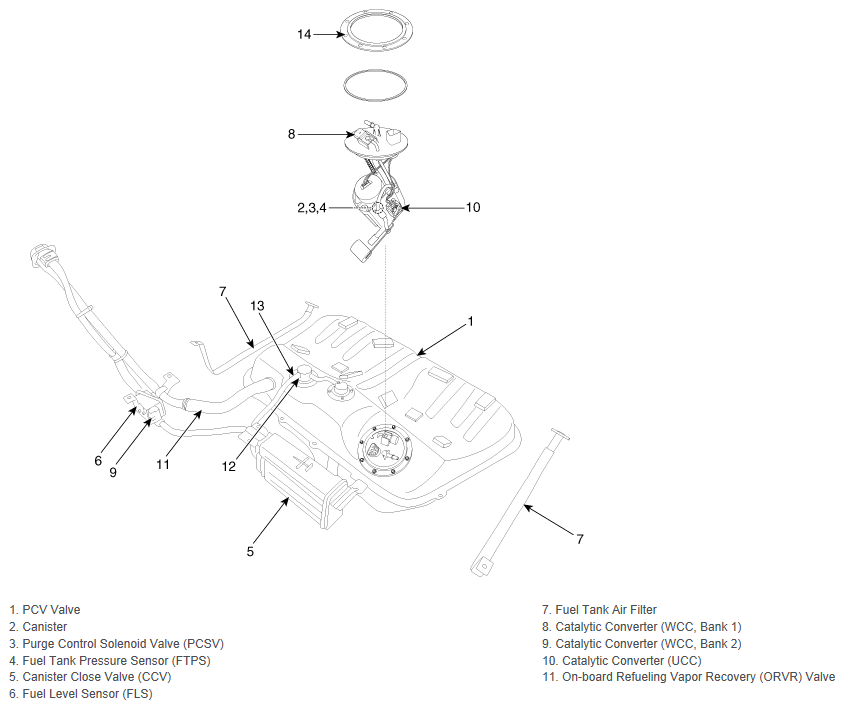

Fig 2: Emission Control System Components (2 Of 4)
G12089178Courtesy of HYUNDAI MOTOR AMERICA

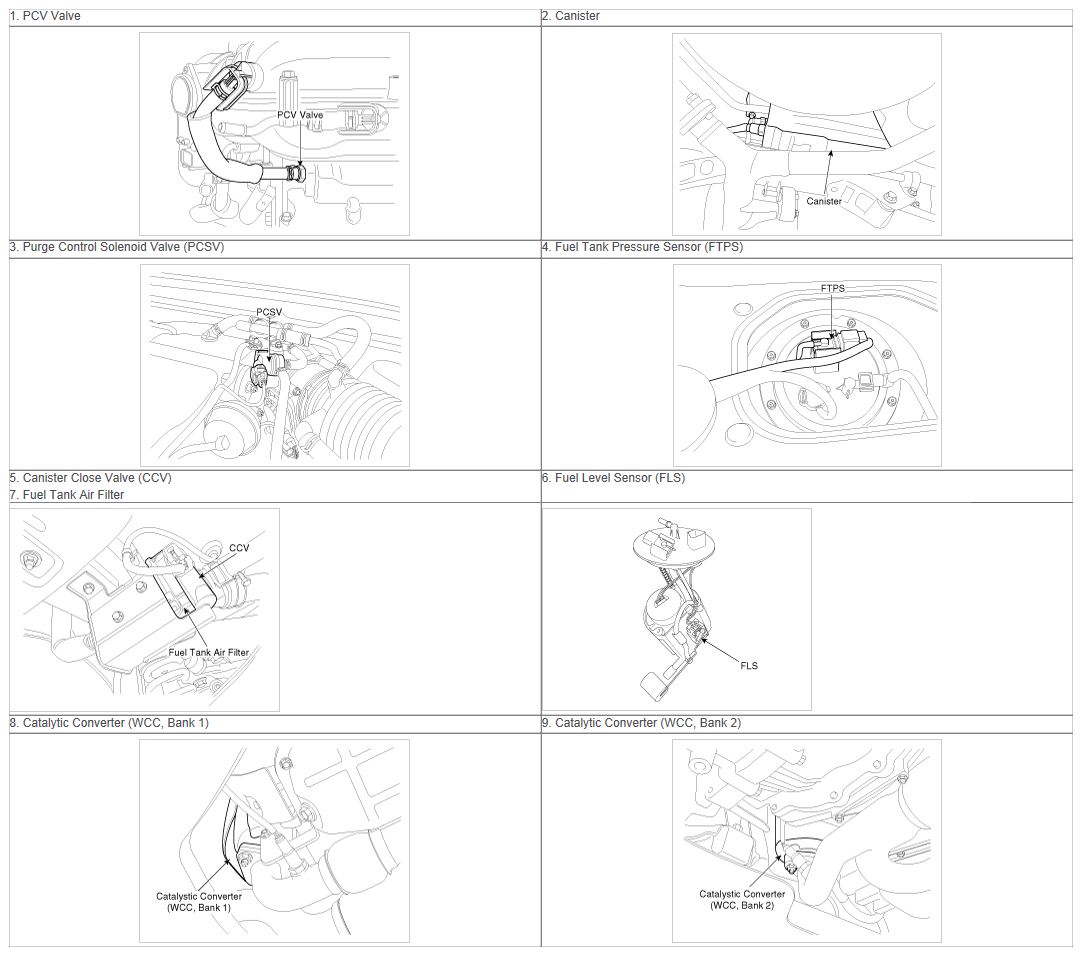

Fig 3: Emission Control System Components (3 Of 4)
G12089179Courtesy of HYUNDAI MOTOR AMERICA

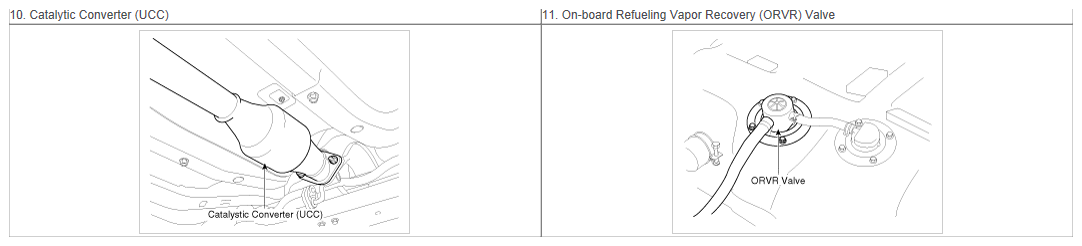

Fig 4: Emission Control System Components (4 Of 4)
G12089180Courtesy of HYUNDAI MOTOR AMERICA
