Engine Control System Diagnosis (1 Of 3)
>>
DTC P0090: Fuel Pressure Regulator 1 Control Circuit/Open
>>
General Information
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

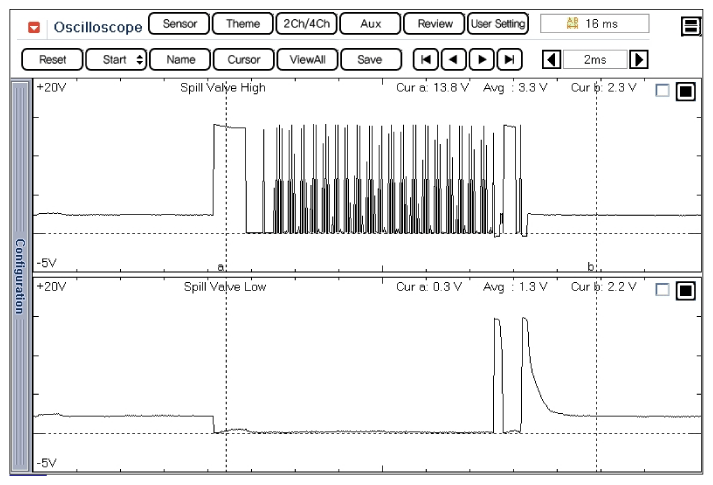

Fig 1: Screen Display - Normal Waveform Of Spill Valve At Idle
Courtesy of HYUNDAI MOTOR AMERICA
