Engine Control System Diagnosis (1 Of 3)
>>
DTC P0196: Engine Oil Temperature Sensor-Range/Performance
>>
General Information
>>
Component Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Location

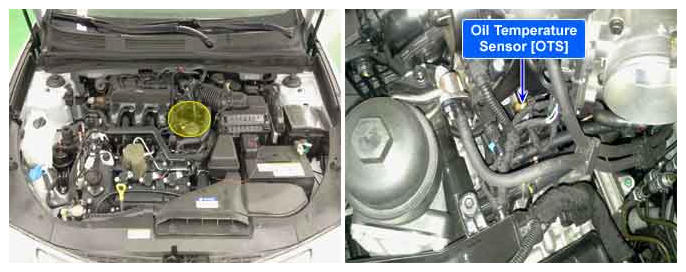

Fig 1: Engine Oil Temperature Sensor-Range/Performance Component
Courtesy of HYUNDAI MOTOR AMERICA
