Engine Control System Diagnosis (3 Of 3)
>>
DTC P2198: O2 Sensor Signal Stuck Rich (Bank 2 Sensor 1)
>>
General Information
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Circuit Diagram

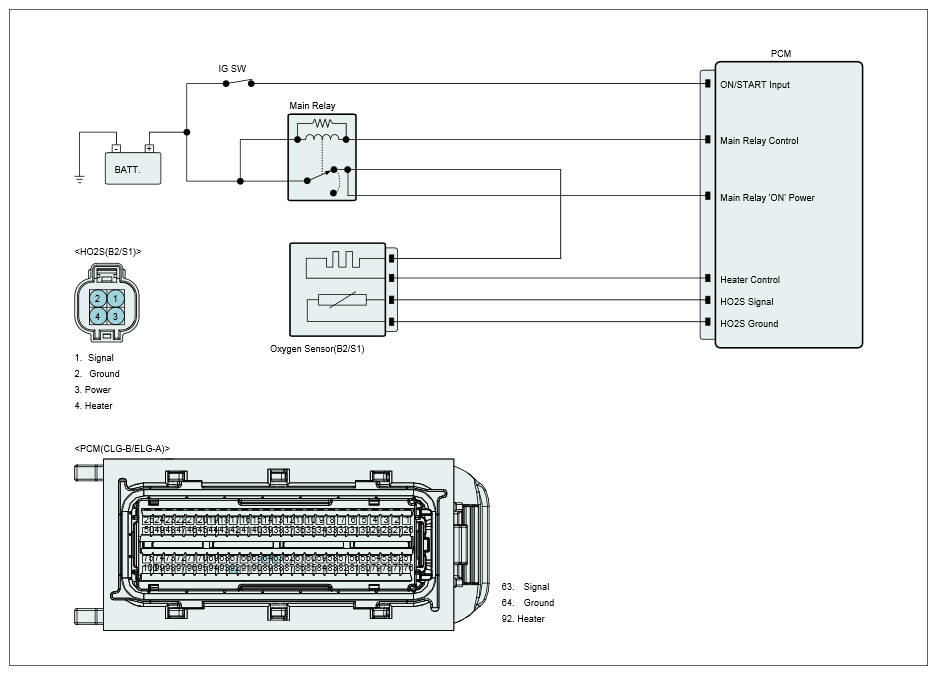

Fig 1: PCM Circuit
Courtesy of HYUNDAI MOTOR AMERICA
