Component Location

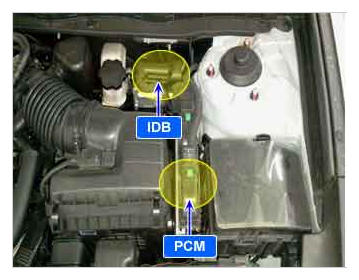

Fig 1: Lost Communication With Fuel Injector Control Module Component
G12090421Courtesy of HYUNDAI MOTOR AMERICA
