Components And Components Location: Components

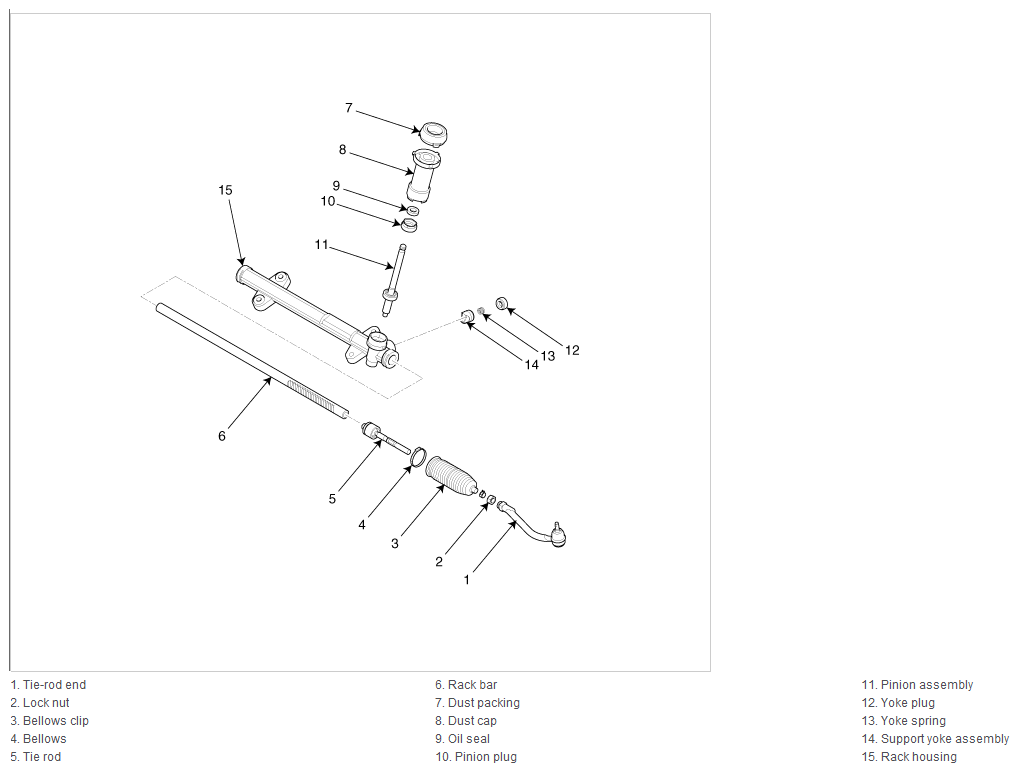

Fig 1: Steering Gear Box Components

G12089509

Courtesy of HYUNDAI MOTOR AMERICA
